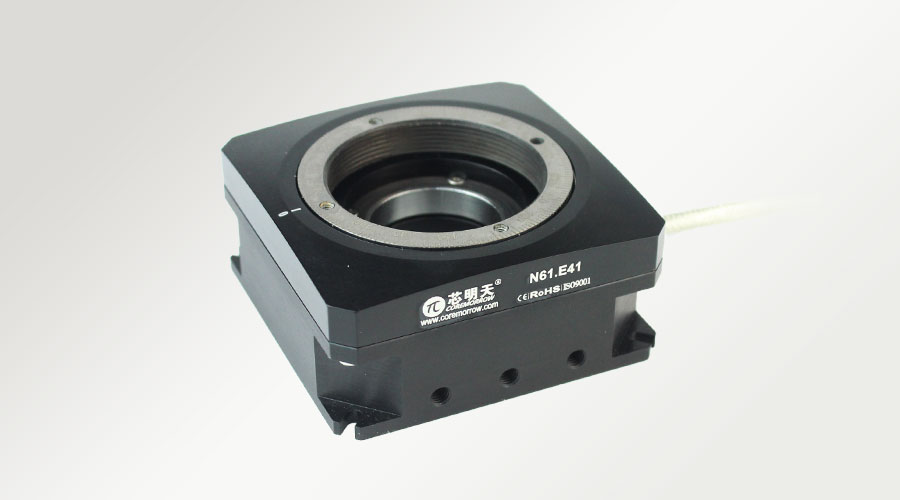

N61.E/K41 Piezo Motor Driven Rotation Stage-25mm Aperture
N61.E/K41 piezo motor driven rotation stage can generate 360° rotation under piezo actuators driven, with max. resolution of 1 μrad, suitable for ultra-high precision rotation applications. It has an aperture with 25mm diameter, which can be used in optical adjustment fields, etc. It can be used in conjunction with E53.D1E-J/E53.C1K-J compact piezo motor controller, operated by software for greater convenience.
Characteristics:
360° bidirectional infinite rotation
Max speed 12°/s
Load capacity to 1kg
Resolution to 1μrad
Self-locking at rest
Vacuum version available
Technical Data:
|
Model |
N61.E41 |
N61.K41 |
Unit |
|
Active Axis
|
360, bidirectional |
360, bidirectional |
° |
|
Integrated Sensor |
SGS |
- |
|
|
Max. Speed |
12 |
12 |
°/s |
|
Central Load Capacity |
1 |
1 |
kg |
|
Resolution |
1 |
5 |
μrad±20% |
|
Repeatability |
0.001 |
- |
° |
|
Cable Length |
1.5 |
1.5 |
m±10mm |
|
Operating Temperature |
10~40 |
10~40 |
℃ |
|
Storage Temperature |
-10~40 |
-10~40 |
℃ |
|
Material |
Steel, Al |
Steel, Al |
|
|
Mass |
385 |
385 |
g±5% |
|
Controller |
E53.D1E-J |
E53.C1K-J |
|

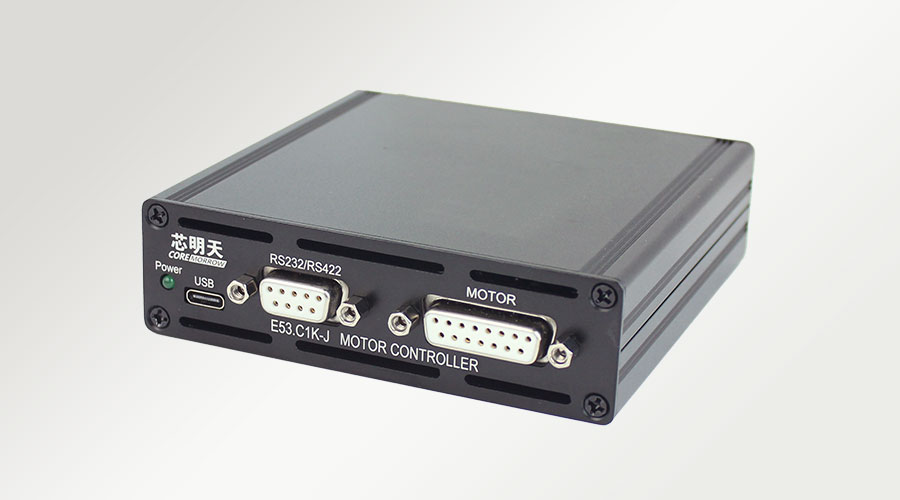

Recommended Controller
