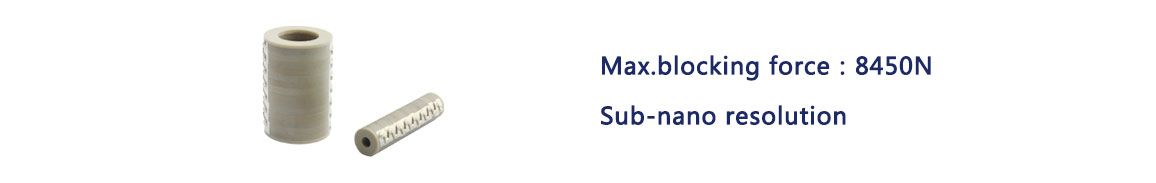

Ring Piezo StacksCurrent Location：Product Homepage >> PZT Ring Stack Actuators>>Ring Piezo Stacks
  • Technical Data
  • Feedback
   Technical data

Model

Outer
Diameter
OD[mm]

Inner
diameter
[mm]

Height H
[mm]

Max.voltage
[V]

Stroke
[μm]

El. capacitance
[nF]±15%

Stiffness
[N/μm]±20%

Blocking
force
[N]±20%

Resonant
frequency
[kHz]±20%

NAC2121-HXX

6

2

4-60

200

3.3-95.7

95-2750

321-11

1060

>248-18

NAC2122-HXX

8

3

4-80

200

3.3-128.7

180-7020

548-14

1810

>248-14

NAC2123-HXX

12

6

4-80

200

3.3-128.7

340-13340

1079-28

3560

>248-14

NAC2124-HXX

15

9

4-80

200

3.3-128.7

460-17900

1439-37

4750

>248-14

NAC2125-HXX

20

12

4-80

200

3.3-128.7

800-31240

2561-66

8450

>248-14
