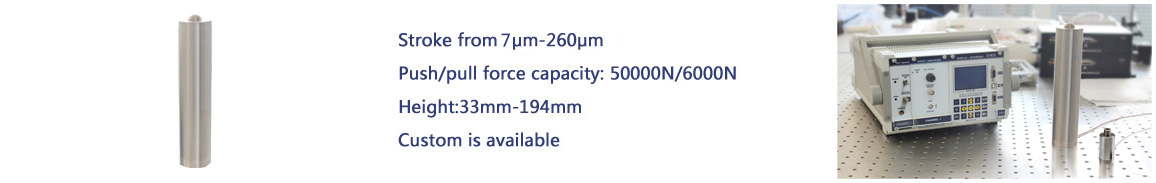

High voltage piezo actuator is preloaded mechanical coating piezo actuator with driving voltage of 1000V. It could withstand some certain pulling force, built-in large generated force piezo ceramic, mainly used for dynamic applications of large loads.
Characteristics
|
|
|
|
|
Applications
|
|
|
|
|
| Technical Data | ||||||||
|
Models |
Max/stroke [μm]±15%* |
Length L [mm]±0.3 |
capacitance [nF]±20% |
Stiffness [N/μm]±20% |
Resonant frequency [kHz] |
Push/pull force [N] |
Weight |
Download |
|
PSt1000/35/7 VS45 |
12/7 |
33 |
300 |
4000 |
40 |
50000/6000 |
- |
|
|
PSt1000/35/20 VS45 |
27/20 |
42 |
800 |
2000 |
35 |
50000/6000 |
- |
|
|
PSt1000/35/40 VS45 |
55/40 |
60 |
1600 |
1000 |
30 |
50000/6000 |
- |
|
|
PSt1000/35/60 VS45 |
80/60 |
78 |
2500 |
600 |
27 |
50000/6000 |
840 |
|
|
PSt1000/35/80 VS45 |
105/80 |
96 |
3300 |
450 |
23 |
50000/6000 |
- |
|
|
PSt1000/35/100 VS45 |
130/100 |
114 |
4100 |
350 |
20 |
50000/6000 |
- |
|
|
PSt1000/35/125 VS45 |
160/125 |
134 |
4900 |
300 |
15 |
50000/6000 |
- |
|
|
PSt1000/35/150 VS45 |
200/150 |
154 |
5700 |
220 |
7 |
50000/6000 |
- |
|
|
PSt1000/35/200 VS45 |
260/200 |
194 |
6500 |
150 |
4 |
50000/6000 |
- |
|
*PSt1000: nominal stroke corresponding drive voltage 0-1000V, max to -200V~1000V, recommended voltage 0~800V for long-term operation to extend lifetime. Closed-loop linearity and repeatability are better.
|
Standard end |
Optional ends |
|||||
|
Internal |
Plane |
External |
Sphere |
|||
|
|
|
|
|
|||
|
See above drawing |
|
|
|
|||
|
See above drawing |
Symbol |
Parameter |
Symbol |
Parameter |
Symbol |
Parameter |
|
A： |
Ø45 |
A: |
Ø45 |
A： |
Ø45 |
|
|
B: |
Ø20 |
B: |
Ø20 |
B： |
Ø20 |
|
|
C3: |
8±0.5 |
C1: |
14±0.5 |
C2： |
11±0.5 |
|
|
|
|
D: |
M8 |
G： |
SR5 |
|
|
|
|
E: |
SW17mm |
|
|
|
|
|
|
F: |
6 |
|
|
|
