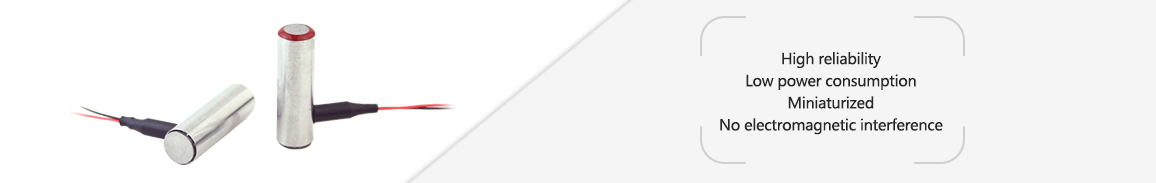

The VS6 series is an open-loop version of low voltage piezo actuators with special design modifications based on conventional preloaded piezo actuators. Unlike conventional preloaded piezo actuators, the VS6 series does not have mechanical interfaces, bottom fixing also abandons commonly threaded fixing，instead, it is fixed by direct placement or positioning with auxiliary components，and is designed to lead out the sheath and leads from the side. This series of actuators has a very compact appearance and is very suitable to use in space efficient environments.
Characteristics
|
|
|
|
|
|
|
|
|
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical Data | |||||
|
Type |
5VS6 |
9VS6 |
20V36 |
40VS6 |
Units |
|
Active axes |
Z |
Z |
Z |
Z |
|
|
Nominal travel range（0~120V） |
4 |
7 | 16 |
32 |
μm±10% |
|
Travel range（0~150V） |
5 |
9 | 20 |
40 |
μm±10% |
|
Stiffness |
45 |
22 | 12 |
6 |
N/μm±20% |
|
Unloaded resonant frequency |
130 |
80 | 40 |
30 |
kHz±20% |
|
Blocking Force |
300 |
300 | 300 |
300 |
N |
|
El.capacitance |
0.07 |
0.18 | 0.47 |
0.94 |
μF±20% |
|
Material |
Steel |
Steel |
Steel |
Steel |
|
|
Size |
φ6*7 |
φ6*12 |
φ6*20 |
φ6*38 |
mm |
