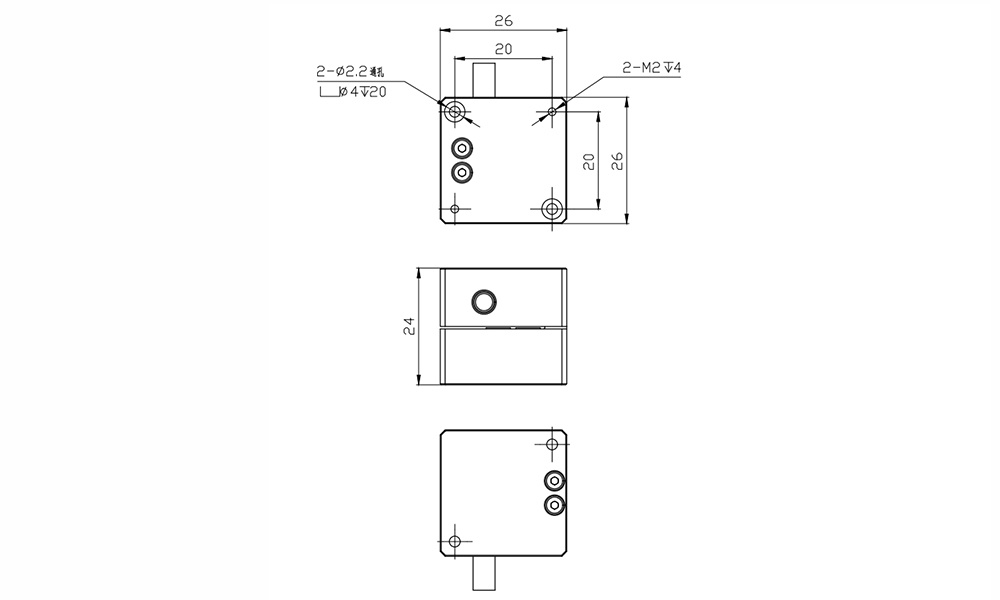

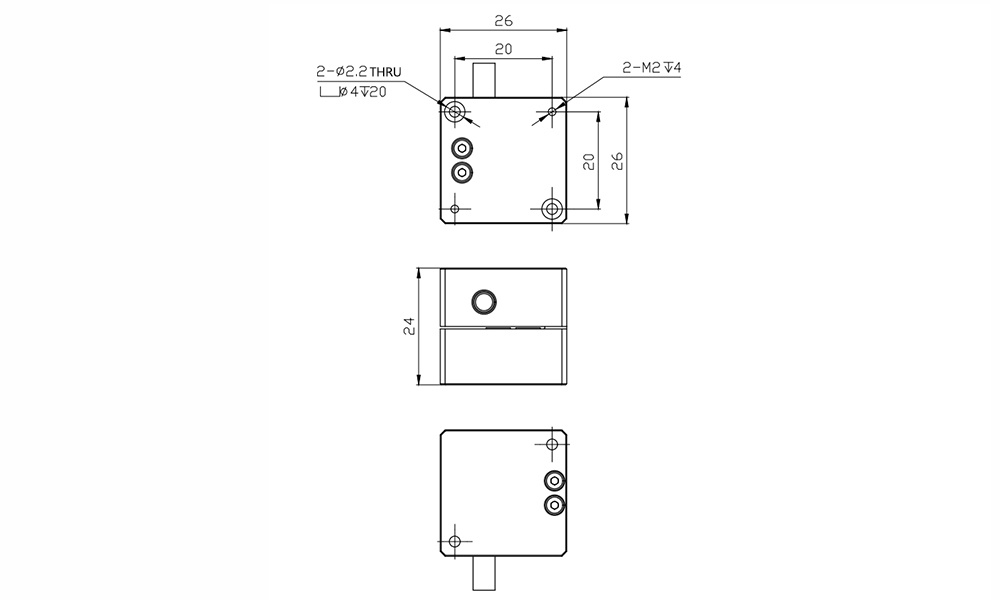

P13.Z30 is Z moiton piezo stage. It adopts parallel kinematic mechanism to amplify the design principle. Built-in high-performance piezo actuator with max displacement of 48μm/axis. Open loop or closed loop version is available.
Characteristics
|
|
|
|
|
Applications
|
|
|
|
|
|
|
|
|
| Technical data | ||||
|
Type |
S-Closed loop
|
P13.Z40S
|
P13.Z40K |
Units |
|
Active axes |
Z |
Z |
|
|
|
Drive control |
1 driving channel |
1 driving channel |
|
|
|
Nominal travel range(0~120V) |
38.5 |
38.5 |
μm±10% |
|
|
Max.travel range(0~150V) |
48 |
48 |
μm±10% |
|
|
Sensor type |
SGS |
- |
|
|
|
Resolution |
1.6 |
1 |
nm |
|
|
Linearity |
0.08 |
- |
%F.S. |
|
|
Repeatability |
0.02 |
- |
%F.S. |
|
|
Pitch/yaw/roll |
＜50 |
＜50 |
μrad |
|
|
Push/pull force capacity |
10/3 |
10/3 |
N |
|
|
Stiffness |
0.5 |
0.5 |
N/μm±20% |
|
|
Unloaded resonant frequency |
1 |
1 |
kHz±20% |
|
|
Resonant frequency@100g |
0.325 |
0.325 |
kHz±20% |
|
|
Step time |
20@100g |
6 |
ms±20% |
|
|
Load capacity |
Horizontal |
0.1 |
0.1 |
kg |
| Vertical | 0.05 | 0.05 | ||
| Inverted | 0.05 | 0.05 | ||
|
Operating temperature |
-20~65 |
-20~65 |
℃ | |
|
El. capacitance |
0.4 |
0.4 |
μF±20% |
|
|
Material |
Steel, Al |
Steel, Al |
|
|
| Cable length | 2 | 2 |
m±10mm |
|
|
Mass |
34(with no cable) |
34(with no cable) |
g±5% |
|
