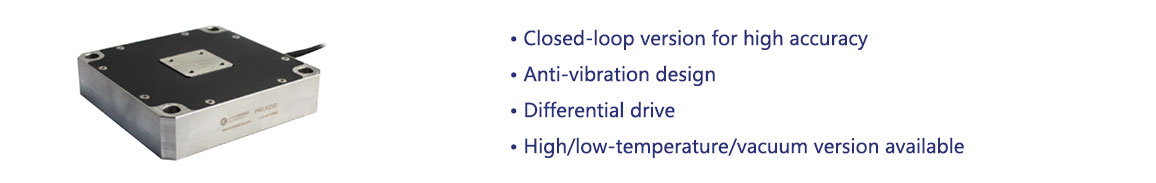

- Introduction
- Feedback
Characteristics
|
|
|
|
|
|
|
|
|
|
|
Step time
|

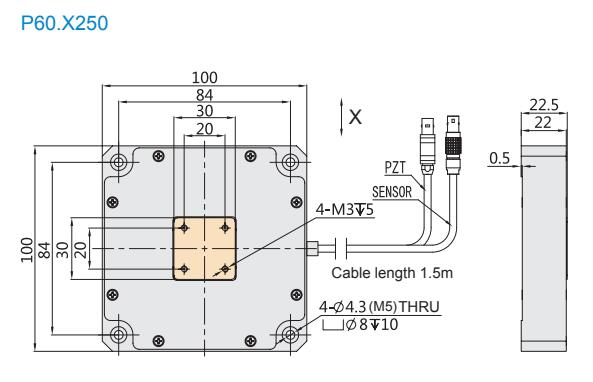

| Technical Data | ||||
|
Type |
P60.X250S |
P60.X250K |
Units |
|
|
Active axes |
X |
X |
|
|
|
Drive control |
2 driving channels 1 sensing channel |
2 driving channels |
|
|
|
Driving channels |
2 |
2 |
|
|
|
Travel range(0~100V) |
±130 |
±130 |
μm±10% |
|
|
Max.travel range(0~120V) |
±165 |
±165 |
μm±10% |
|
|
Sensor |
SGS |
- |
|
|
|
Resolution |
9 |
3 |
nm |
|
|
Linearity |
0.1 |
- |
%F.S. |
|
|
Repeatability |
0.04 |
- |
%F.S. |
|
|
Pitch/yaw/roll |
<10 |
<10 |
μrad |
|
|
Push/pull force |
300/30 |
300/30 |
N |
|
|
Stiffness |
1.2 |
1.2 |
N/μm±20% |
|
|

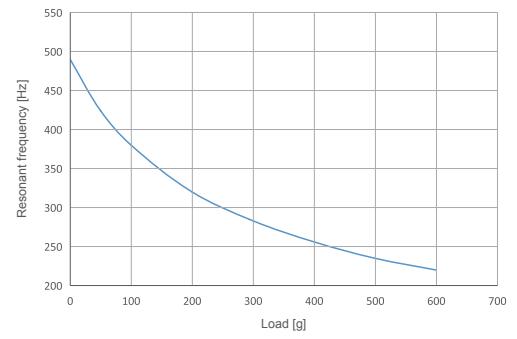

Unloaded resonant frequency |
490 |
490 |
Hz±20% |
|
|
Unloaded step time |
80 |
40 |
ms±20% |
|
|
Load capacity |
Horizontal |
1 |
1 |
kg |
|
Vertical |
0.5 | 0.5 | ||
|
Inverted |
1 | 1 | ||
|
El. capacitance |
24.6 |
24.6 |
μF±20% |
|
|
Operating temperature |
-40~+80 |
-40~+80 |
℃ |
|
|
Anti-vibration |
Half sine wave |
15g， 11ms |
15g， 11ms |
|
|
Back peak sawtooth wave |
20g， 11ms |
20g， 11ms |
||
|
Material |
Steel, Aluminum |
Steel, Aluminum |
|
|
|
Mass |
950 |
950 |
g±5% |
|
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
