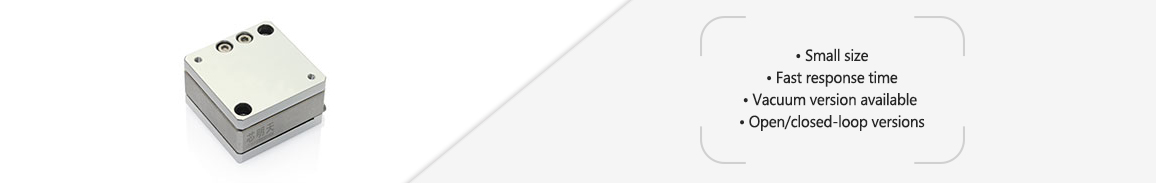

P13.XY is XY moiton piezo stage. It adopts parallel kinematic mechanism to amplify the design principle. Built-in high-performance piezo actuator with max displacement of 45μm/axis. Open loop or closed loop version is available.
Characteristics
XY axes |
Max stroke to 45μm |
Small size |
Quick response time |

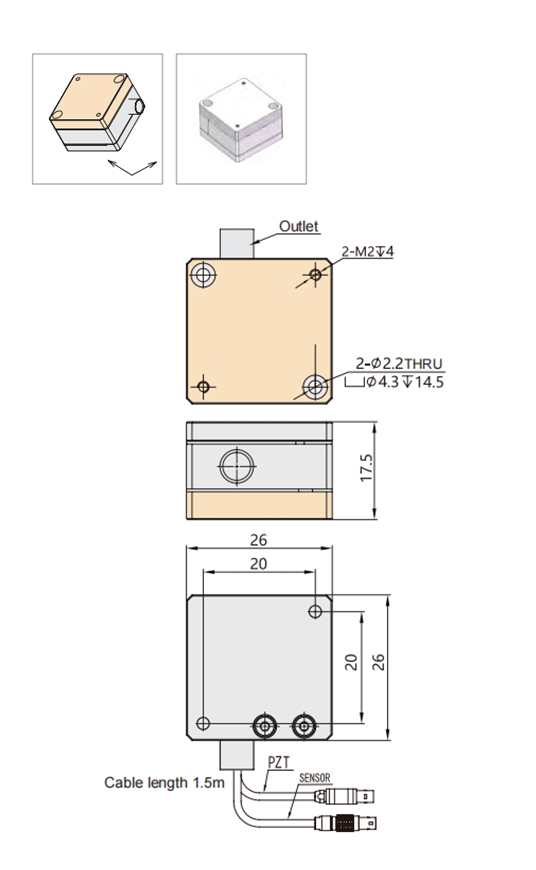

Appearance |
Moving-part |
Amplified-driving |
Ultra-Small Size, High Resolution
Solid-state hinge parallelogram design principle, it has very high resolution and good linearity of motion. |
Sensor |
Closed Loop Stabilization Time Settling time of the P13.XY50S closed loop version full stroke is ~30ms. |
Freqency VS Load Curve |
Applications
2D/3D scanning |
Light path adjustment |
Semiconductor |
Micromanipulation |
AFM |
Nanopositioning |
|
|
Technical data | |||
Models |
S-Closed loop K-Open loop |
P13.XY30S P13.XY30K |
Units |
Active axes |
XY |
|
|
Drive control |
2 driving channels 2 sensing channels |
|
|
Travel range(0~120V) |
36/axis |
μm±10% |
|
Travel range(0~150V) |
45/axis |
μm±10% |
|
Integrated sensor |
SGS/- |
|
|
Closed/open loop resolution |
1/0.5 |
nm |
|
Closed-loop linearity |
0.2/- |
%F.S. |
|
Repeatability |
0.1/- |
%F.S. |
|
Pitch/Yaw/Roll |
<30 |
μrad |
|
Push/pull force capacity |
5/2 |
N |
|
Stiffness |
X0.15/Y0.2 |
N/μm±20% |
|
Unloaded resonant frequency |
0.6 |
kHz±20% |
|
Closed/open-loop unloaded Step time |
20/3 |
ms±20% |
|
Load capacity |
0.2 |
kg |
|
Electrical capacitance |
0.4/axis |
μF±20% |
|
Material |
Steel, Aluminum |
|
|
Mass |
110 |
g±5% |
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
|
|
