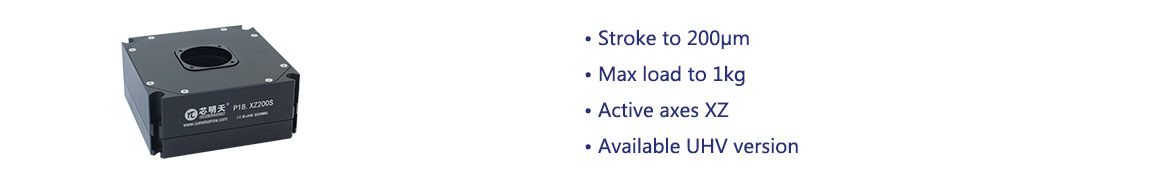

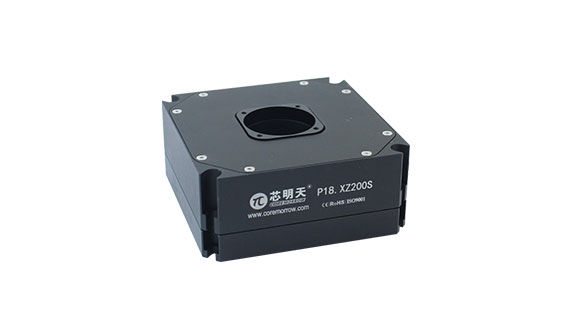

P18 1~3 axes piezo linear scanner adopts amplified mechanism and built-in high-reliability piezo actuators, which could realize highspeed scanning up to 300μm. The aperture is Ø35mm, and various displacements and specifications are available for selection. It is suitable for long-travel multi-dimensional scanning applications.
Characteristics
|
|
|
|
|
|
|
|
|
|
|

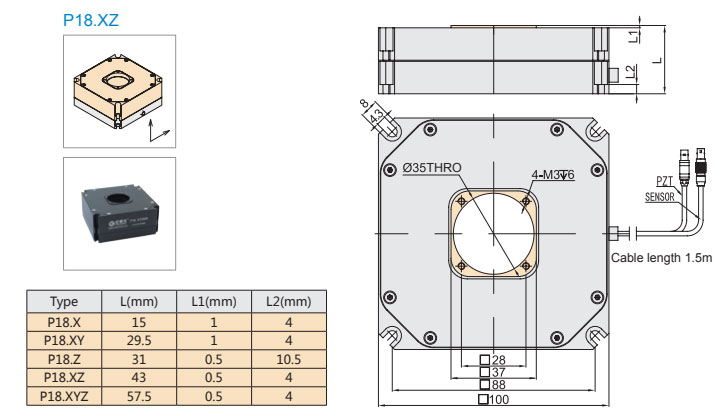

Appearance
|
Direct-driving
|
High Positioning Accuracy CoreMorrow P18.XY300 featuring large displacement, high precision and high stability is applied to nanolithography experiments .
|
Applications
|
|
|
|
|
|
|
|
|
|
| Technical Data | ||||
|
Type |
S-Closed loop |
P18.XZ200S |
P18.XZ200K |
Units |
|
K-Open loop |
||||
|
Active axes |
Z |
Z |
|
|
|
Drive control |
2 driving channels 2 sensing channels |
2 driving channels |
|
|
|
Travel range(0~120V) |
160/axis |
160/axis |
µm±10% |
|
|
Travel range(0~150V) |
200/axis |
200/axis |
µm±10% |
|
|
Sensor |
SGS |
- |
|
|
|
Aperture |
Ø35 |
Ø35 |
mm |
|
|
Closed/open loop resolution |
7 |
2 |
nm，typ. |
|
|
Closed-loop linearity |
0.2 |
- |
%F.S. |
|
|
Repeatability |
0.15 |
- |
%F.S. |
|
|
Pitch/yaw/roll |
<20 |
<20 |
µrad |
|
|
Push/pull force |
30/10 |
30/10 |
N |
|
|
Stiffness |
0.3 |
0.3 |
N/µm±20% |
|
|
Unloaded resonant frequency |
X200/Z300 |
X200/Z300 |
Hz±20% |
|
|
Closed/open-loop unloaded step time |
50 |
5 |
ms±20% |
|
|
Closed-loop operating frequency（-3dB） |
- |
- |
Hz±20% |
|
|
Load capacity |
1 |
1 |
Kg |
|
|
El. capacitance |
11/axis |
11/axis |
μF±20% |
|
|
Material |
Aluminum |
Aluminum |
|
|
|
Mass |
550 |
550 |
g±5% |
|
Note: Max driving voltage could be -20V~150V, recommended voltage 0~120V for long-term and high-reliable operation.
Technical data is measured by CoreMorrow E00/E01 series piezo controller.
