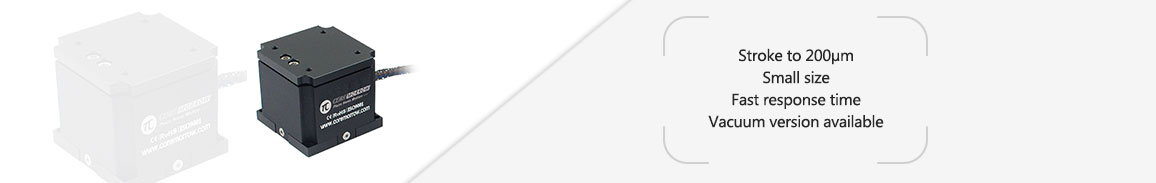

P11.XY200 is a small-volume 2 axis piezo nanopositioning stage, its travel range can reach 200μm, and a closed-loop feedback sensor can be selected to obtain higher precision. Custom low temperature vacuum versions are available.
Characteristics
|
|
|
|
|
Typical Application
|
|
|
|
|
|
|
|
|
|
| Technical Data | |||
|
Type |
P11.XY200S |
P11.XY200K |
Units |
|
Active axes |
X、Y |
X、Y |
|
|
Drive control |
2 driving channels 2 sensing channels | 2 driving channels |
|
|
Travel range(0~120V) |
160/axis |
160/axis |
μm±20% |
|
Travel range(0~150V)） |
200/axis |
200/axis |
μm±20% |
|
Sensor |
SGS |
- |
|
|
Closed/open loop resolution |
10 |
5 |
nm |
|
Linearity |
0.05 |
- |
%F.S. |
|
Repeatability |
0.02 |
- |
%F.S. |
|
Unloaded resonant frequency |
100 |
100 |
Hz±20% |
|
Closed/open-loop unloaded step time |
- |
- |
ms±20% |
|
Load capacity |
0.3 |
0.3 |
kg |
|
El. capacitance |
3.6 |
3.6 |
μF±20% |
|
Material |
Steel, Aluminum |
Steel, Aluminum |
|
|
Mass |
- |
- |
g±5% |
