The P34.T2S/K-C2 is a large-load piezo tip/tilt platform can carry an elliptical lens of L95mm×W65mm for precise positioning. Its differential drive shows extremely excellent angular positioning stability. The lens holding design of the moving surface makes the installation of the lenses more convenient. Open-loop and closed-loop versions are both available.
Characteristics
|
|
|
|
|
 Customizable
|
|
|
|
Applications
|
|
|
|
|
|
Beam stability
|
Error correction for polygon mirror
|
|
|

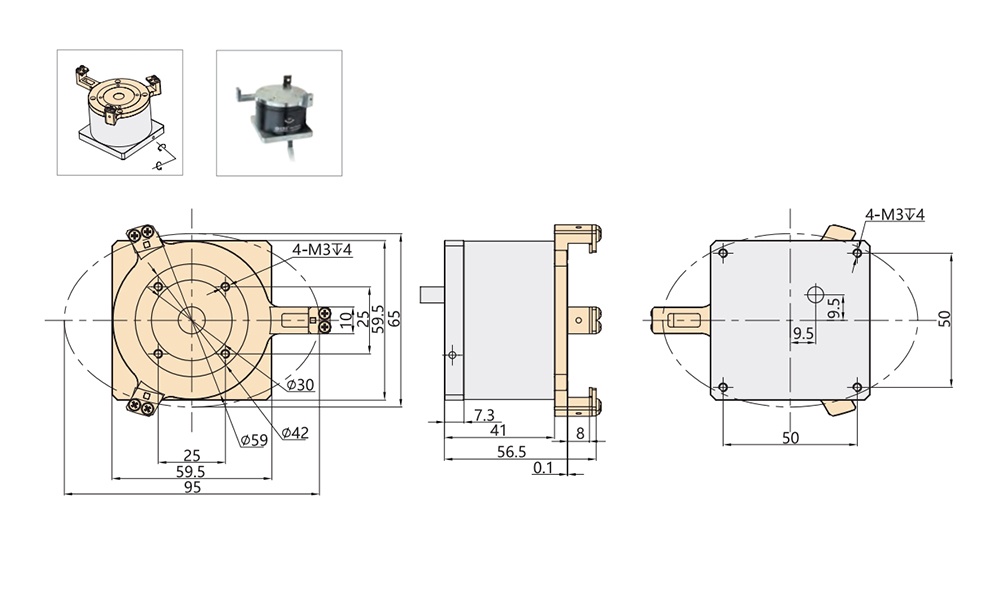

| Technical Data | ||||
|
Type |
S-Closed loop
K-Open loop |
P34.T2S-C2
|
P34.T2K-C2
|
Units |
|
Active axes |
θx、θy |
θx、θy |
|
|
|
Drive control |
3 driving channels |
3 driving channels |
|
|
|
Nominal tilt angle(0~120V) |
±1.1/axis（±227''） |
±1.1/axis（±227''） |
mrad±10% |
|
|
Max. tilt angle(0~150V) |
±1.4/axis（±289''） |
±1.4/axis（±289''） |
mrad±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
| Resolution |
0.075（≈0.02''） |
0.03（＜0.01''） |
μrad |
|
| Linearity |
0.1 |
- |
%F.S. |
|
| Repeatability |
0.033 |
- |
%F.S. |
|
|
Loaded resonant frequency@100g
|
1/0.65 |
1/0.65 |
kHz±20% |
|
| Load capacity |
100(L95mm×W65mm×TH8mm elliptical reflective lens)
|
100(L95mm×W65mm×TH8mm elliptical reflective lens)
|
g |
|
|
El.capacitance |
7.2/ axis |
7.2/ axis |
μF±20% |
|
|
Material |
Aluminum |
Aluminum |
|
|
| Cable length | 5 | 5 |
m±10mm |
|
| Connector |
J30J-15TJSL |
J30J-15TJSL |
|
|
