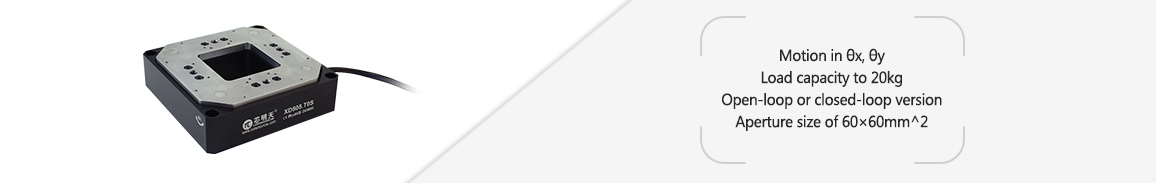

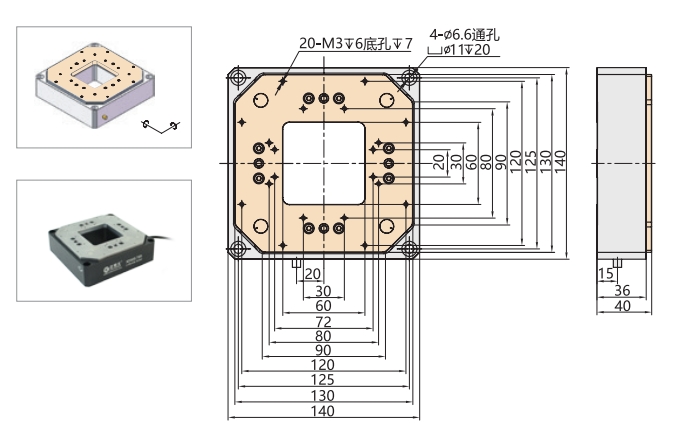

XD505.T0 piezo tilt/tip stage tilts in θx and θy direction，its load capacity is up to 20kg，which is ideal for large load deflection adjustment. It features a center aperture of 60×60mm^2 that is suitable for light-transmitted applications.
Characteristics
|
|
|
|
|
Motion in θx, θyApplications
|
|
|
|
|
| Technical Data | |||
|
Types |
XD505.T0S |
XD505.T0K |
Units |
|
Active axes |
θx θy |
θx θy |
|
|
Drive control |
3 driving channels 2 sensing channels |
3 driving channels |
|
|
Nominal travel in θx θy(0~120V) |
0.28/axis |
0.28/axis |
mrad±10% |
|
Travel in θx θy(0~150V) |
0.35/axis |
0.35/axis |
mrad±10% |
|
Sensor type |
SGS |
- |
|
|
Closed/open-loop repeatability |
0.01 |
0.003 |
%F.S. |
|
Linearity |
0.3/axis |
- |
%F.S. |
|
Repeatability |
θx0.13/θy0.24 |
- |
%F.S. |
|
Unloaded resonant frequency |
4.6/axis |
4.6/axis |
kHz±20% |
|
Resonant frequency@5kg |
θx0.4/θy0.32 |
θx0.4/θy0.32 |
kHz±20% |
|
Step Time |
50 |
10 |
ms |
|
Load capacity |
20 |
20 |
kg |
|
El.capacitance |
14.4 |
14.4 |
μF±20% |
|
Material |
Al, Steel |
Al, Steel |
|
|
Mass |
5 (Cable not included) |
5 (Cable not included) |
g±5% |
