S22.U0S/K-A1W non-magnetic Piezo Tilt StageCurrent Location：Product Homepage >> Piezo Z/Tip/Tilt Stages>>S22.U0S/K-A1W non-magnetic Piezo Tilt Stage

Introduction
Feedback

S22.U0S/K-A1W is a one-dimensional non-magnetic piezo tilt stage that performs deflection in θx and can achieve a displacement of 0.5mrad. Its load capacity can reach up to 500g. To ensure non-magnetism, its internal structure and materials have undergone special treatment.

Characteristics

Tilt in θx	Tilt angle up to 0.5mrad	Resolution up to 0.005μrad	Load capacity up to 500g
Non-magnetic

Technical Data
Type	S-Closed loop	S22.U0S-A	S22.U0K-A	Units
Type	K-Open loop	S22.U0S-A	S22.U0K-A	Units
Active axes		θx	θx
Drive control		2 driving channels 1 sensing channel	2 driving channels
Nominal tilt angle(0~120V)		±0.2（≈±41''）	±0.2（≈±41''）	mrad±10%
Max. tilt angle(0~150V)		±0.25（≈±52''）	±0.25（≈±52''）	mrad±10%
Integrated sensor		SGS	-
Resolution		0.013（＜0.01''）	0.005（＜0.01''）	µrad
Linearity		0.104	-	%F.S.
Repeatability		0.023	-	%F.S.
Unloaded resonant frequency		1800	1800	Hz±20%
Closed-loop operating frequency (-3dB)		100@400g	-	Hz±10%
Step time		5@400g、20μrad	2	ms±20%
El.capacitance		14	14	μF±20%
Load capacity		500	500	g
Material		Ti, Aluminum	Ti, Aluminum
Mass (not include cable)		590	590	g±5%

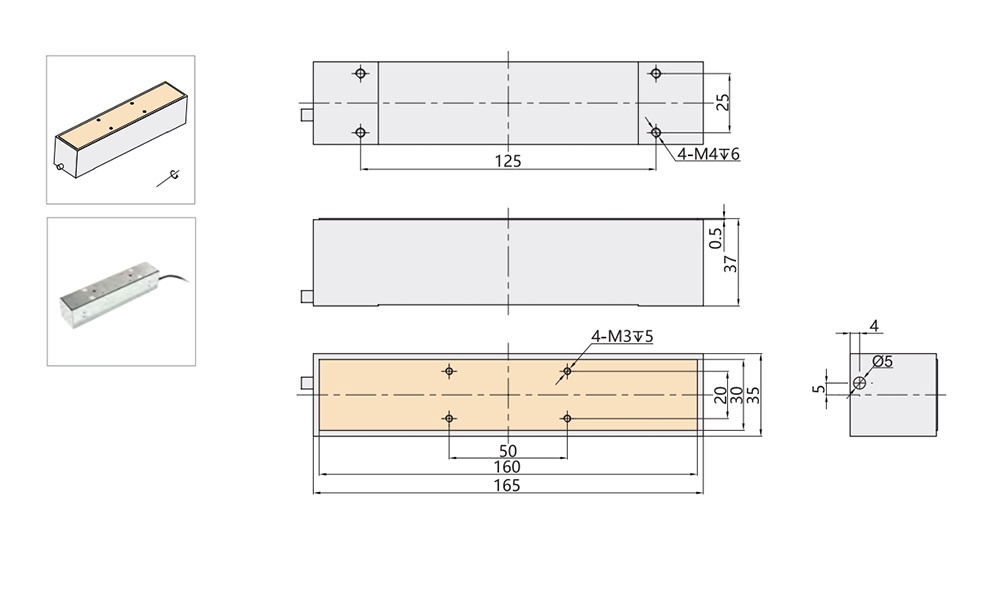

Drawing（Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
