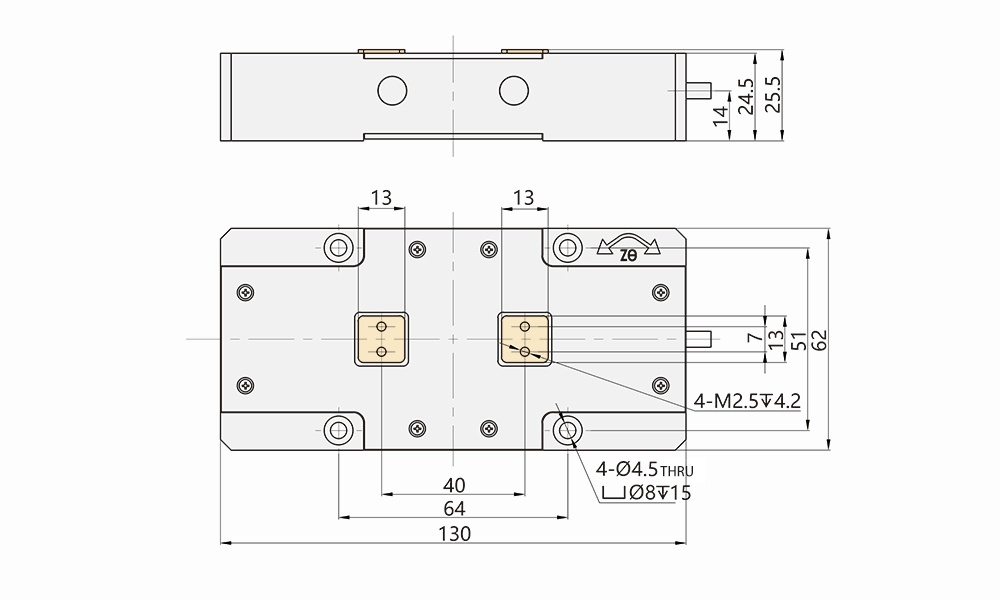

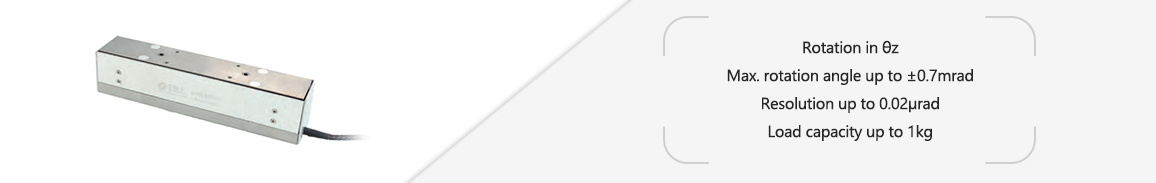

The S20A.R1S/K-C1W is a one-dimensional θz non-magnetic piezo rotation stage, capable of achieving a displacement of ±0.7mrad and a load capacity of up to 1kg. To ensure non-magnetism, its internal structure and materials have undergone special treatment. Customization can be made according to customer requirements.
Characteristics
|
|
|
|
|
|
|
|
|
| Technical Data | ||||
|
Type |
S-Closed loop |
S20A.R1S-C1W |
S20A.R1K-C1W |
Units |
|
K-Open loop |
||||
|
Active axes |
θz |
θz |
|
|
|
Drive control |
2 driving channels 1 sensing channel |
2 driving channels |
|
|
|
Nominal tilt angle(0~120V) |
±0.55（≈±114''） |
±0.55（≈±114''） |
mrad±10% |
|
|
Max.tilt angle(0~150V) |
±0.7（≈±144''） |
±0.7（≈±144''） |
mrad±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
|
Resolution |
0.04（≈0.01''） |
0.02（＜0.01''） |
µrad |
|
|
Linearity |
0.08 |
- |
%F.S. |
|
|
Repeatability |
0.05 |
- |
%F.S. |
|
|
Closed-loop operating frequency (-3dB) |
20@400g |
- |
Hz±10% |
|
|
Step time |
20@400g |
- |
ms±20% |
|
|
El.capacitance |
3.75 |
3.75 |
μF±10% |
|
| Load capacity | 1 | 1 | kg | |
|
Material |
Ti, Aluminum |
Ti, Aluminum |
|
|
|
Mass (not include cable) |
1000 |
1000 |
g±5% |
|
