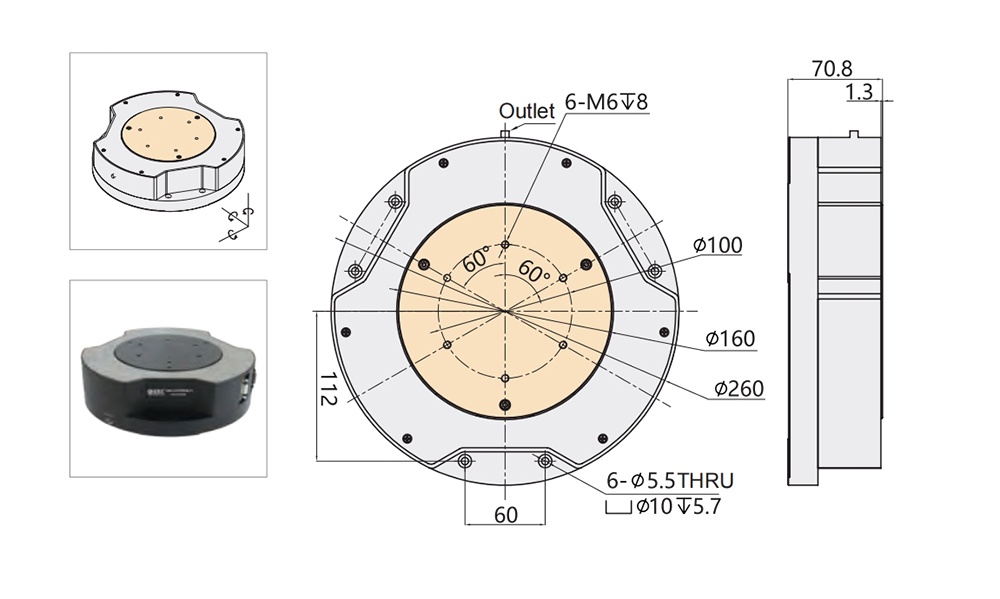

H64A.XYZTR2S/K-C is a piezo nanopositioning platform that can generate ultra precision motion in six axes, suitable for positioning and attitude adjustment. It adopts a parallel mechanism design internally, which can achieve better dynamic performance. It is equipped with high-performance piezos, which can achieve linear displacement of ±9μm in X, ±9.5μm in Y, 155μm in Z and deflection angle of ±1.1mrad in θx,θy, ±1mrad in θz. The closed-loop version of the full bridge design avoids temperature drift significantly and ensures nanometer positioning accuracy.
Characteristics
|
|
|
|
|
 Parallel mechanism, better dynamics
|
|
|
|
|

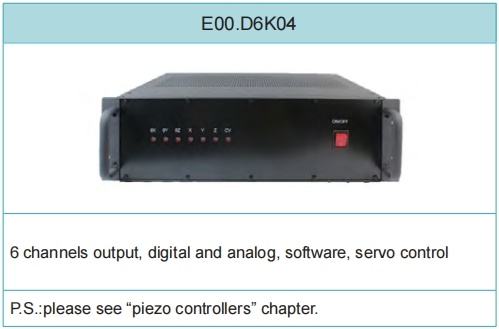

Recommended Controller
|
| Technical Data | |||
|
Type |
H64A.XYZTR2S-C |
H64A.XYZTR2K-C |
Units |
|
Active axes |
X、Y、Z、θx、θy、θz |
X、Y、Z、θx、θy、θz |
|
|
Drive control |
6 driving channels |
6 driving channels |
|
|
XYZ nominal travel range(0~120V) |
X±7/Y±7.5/Z125 |
X±7/Y±7.5/Z125 |
μm±10% |
|
XYZ travel range(0~150V) |
X±9/Y±9.5/Z155 |
X±9/Y±9.5/Z155 |
μm±10% |
|
θxθyθz nominal travel range(0~120V) |
θxθy±0.9（≈±186秒）/ θz±0.8（≈±165秒） |
θxθy±0.9（≈±186秒）/ θz±0.8（≈±165秒） |
mrad±10% |
|
θxθyθz travel range(0~150V) |
θxθy±1.1（≈±227秒）/ θz±1（≈±206秒） |
θxθy±1.1（≈±227秒）/ θz±1（≈±206秒） |
mrad±10% |
|
Integrated sensor |
SGS |
- |
|
|
XYZ resolution |
X0.56/Y0.61/Z5 |
XY0.2/Z1.5 |
nm |
|
θxθyθz resolution |
θxθy0.08/θz0.07（≈0.015秒） |
0.025（＜0.01秒） |
μrad |
|
Linearity |
XZ0.05/Y0.12/θx0.04/θy0.02/θz0.03 |
- |
%F.S. |
|
Repeatability |
XY0.04/Z0.02/θxθyθz0.02 |
- |
%F.S. |
|
Unloaded resonant frequency |
X562/Y630/Z338/θz380 |
X562/Y630/Z338/θz380 |
Hz±20% |
|
Loaded resonant frequency@10kg |
X220/Y210/Z109/θz112 |
X220/Y210/Z109/θz112 |
Hz±20% |
| Load capacity | 12 | 12 | kg |
| El. Capacitance |
XY7.2/θxθyZ21.6/θz50 |
XY7.2/θxθyZ21.6/θz50 |
μF±20% |
|
Closed-Loop Step Time |
40@1Hz，1/10 travel |
- |
ms±20% |
| Material |
Steel, Al |
Steel, Al |
|
|
Mass(Not include cable) |
6.45 |
6.45 |
kg±5% |
|
Connector |
DB15 male + DB15 female |
DB15 male + DB15 female |
|
