H63.XYZTR2S/K is a piezo nanopositioning platform that can generate ultra precision motion in six axes, suitable for positioning and attitude adjustment. It is equipped with high-performance piezos, which can achieve linear displacement of 36μm/axis in XYZ and deflection angle of 2mrad in θx,θy, 2.5mrad in θz. The closed-loop version of the full bridge design avoids temperature drift significantly and ensures nanometer positioning accuracy.
Characteristics
|
|
|
|
|
 Closed-loop version for high positioning accuracy
|
|
|
|

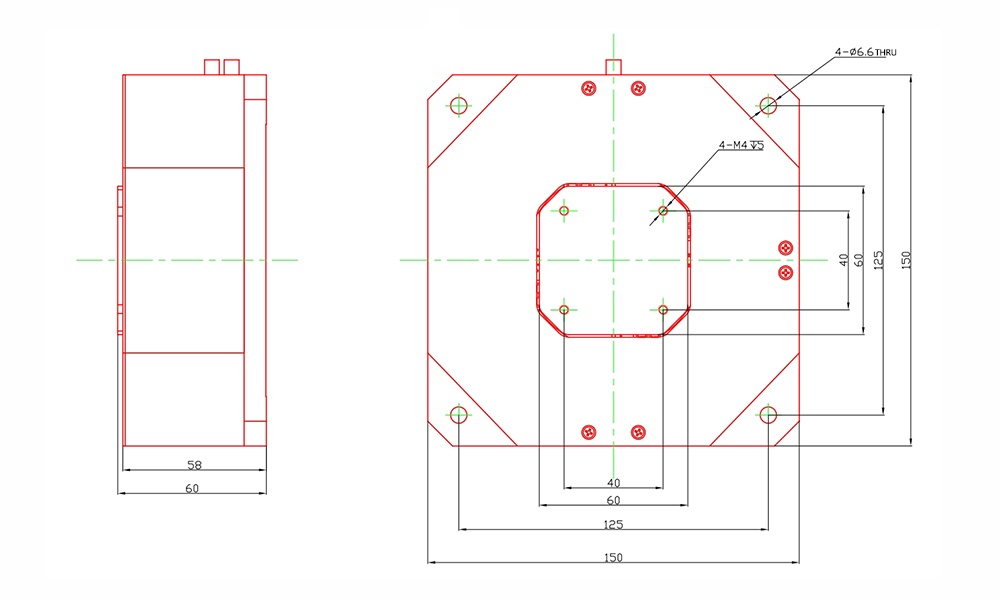

| Technical Data | |||
|
Type |
H63.XYZTR2S |
H63.XYZTR2K |
Units |
|
Active axes |
X、Y、Z、θx、θy、θz |
X、Y、Z、θx、θy、θz |
|
|
Drive control |
7 driving channels
6 sensing channels
|
7 driving channels |
|
|
XYZ nominal travel range(0~120V) |
24/axis |
24/axis |
μm±10% |
|
XYZ travel range(0~150V) |
30/axis |
30/axis |
μm±10% |
|
θxθyθz nominal travel range(0~120V) |
θxθy1.6（≈330''）/ θz2（≈412''） |
θxθy1.6（≈330''）/ θz2（≈412''） |
mrad±10% |
|
θxθyθz travel range(0~150V) |
θxθy2（≈412''）/ θz2.5（≈516''） |
θxθy2（≈412''）/ θz2.5（≈516''） |
mrad±10% |
|
Integrated sensor |
SGS |
- |
|
|
XYZ resolution |
1 |
1 |
nm |
|
θxθyθz resolution |
0.1（≈0.02''） |
0.1（≈0.02''） |
μrad |
|
Linearity |
XY0.07/Z0.19/
θx0.07/θyθz0.1
|
- |
%F.S. |
|
Repeatability |
X0.02/Y0.03/Z0.09/
θx0.05/θy0.04/θz0.03
|
- |
%F.S. |
|
Unloaded resonant frequency |
X465/Y295/Z445/
θx230/θy305/θz230
|
X465/Y295/Z445/
θx230/θy305/θz230
|
Hz±20% |
|
Loaded resonant frequency@5kg |
X161/Y115/Z107/
θx22/θy24/θz45
|
X161/Y115/Z107/
θx22/θy24/θz45
|
Hz±20% |
|
Load capacity |
5 |
5 |
kg |
|
El. Capacitance |
X7.2/Y7.5/Z31.2/
θxθy1.1/θz17.7
|
X7.2/Y7.5/Z31.2/
θxθy1.1/θz17.7
|
μF±20% |
|
Closed-Loop Step Time |
XYZ160/θxθyθz400
@1Hz，fixed amplitude
|
- |
ms±20% |
|
Material |
Steel, Al |
Steel, Al |
|
|
Mass |
2.5(Not include cable) |
2.5(Not in clude cable) |
kg±5% |
