H61.XYZTR0S/K-A 6-Axis Piezo Tilt Stage can produce sixaxis ultra-precision motion, suitable for static six-axis linear nano-positioning and angular nano-radian deflection. With a 50mm×50mm through hole in the center, it can be used for transmitted light applications.

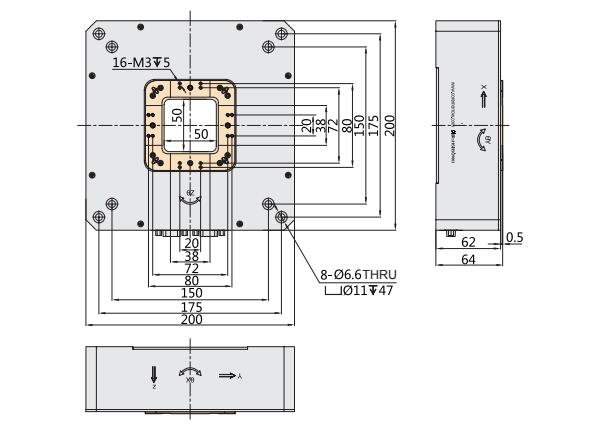

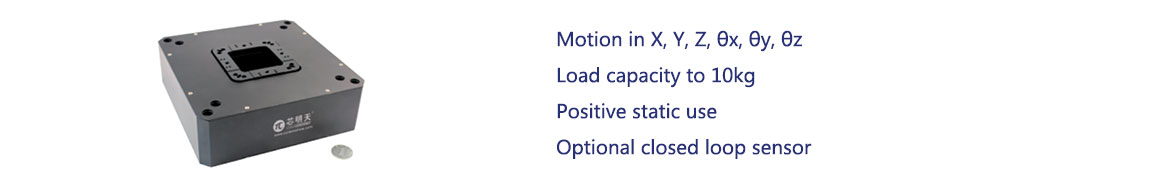

Characteristics
|
|
|
|
|
Application
|
|
|
|
|
| Technical Data | ||
|
Type |
H61.XYZTR0S/K-A |
Units |
|
Active axes |
X、Y、Z、θx、θy、θz |
|
|
Drive control |
8 driving channels 6 sensing channels |
|
|
XYZ Travel(0~120V) |
XY, ±32/axis, Z: 28 |
μm±20% |
|
XYZ Max.travel(0~150V) |
XY, ±40/axis, Z: 35 |
μm±20% |
|
Travel in θxθy(0~120V) |
±0.28/axis |
mrad±20% |
|
Max.travel in θxθy(0~150V) |
±0.35/axis |
mrad±20% |
|
Travel in θz(0~120V) |
±0.12/axis（≈ ±25 "） |
mrad±20% |
|
Max.travel in θz(0~150V) |
0.3/axis（≈ 62 "） |
mrad±20% |
|
Closed/ope-loop resolution in θx，θy |
0.02/0.01（＜ 0.01 "） |
μrad |
|
Closed/ope-loop resolution in θz |
0.02/0.01（＜ 0.01 "） |
μrad |
|
Closed/ope-loop resolution in xy |
2.5/1 |
nm |
|
Closed/ope-loop resolution in z |
1/0.5 |
nm |
|
Linearity |
0.2 |
%F.S. |
|
Repeatability |
0.1 |
%F.S. |
|
Unloaded resonant frequency |
350 |
Hz±20% |
|
Resonant frequency loading |
50（@10.5kg） |
Hz±20% |
|
Sensor |
SGS/- |
|
|
Load capacity |
10.5 |
kg±5% |
|
Central aperture
|
50×50 |
mm |
|
Using way |
Positive use, static |
|
|
El. capacitance |
XYZ: 29/axis, θxθyθz: 15/axis，θz: 10.8 |
μF±20% |
|
Mass |
4.2 |
kg |
|
Material |
Steel, aluminum |
|
|
Connector |
DB15 male×1 and DB15 female×1 |
|
Note:
1.Above parameters are measured with the E00/E01 piezo controller. The maximum driving voltage can be -20V~150V; For highreliability and long-term operation, the recommended driving voltage is 0~120V.
2.The product platform has connectors in side and cables is independent.
