E53.A1K-K board-type piezo controller is specially customized according to customer requirements, and it's mainly used for driving piezo actuator. It is small in size and ideal for space-limited applications. Meanwhile, it's equipped with heat sink below the equipment, to achieve effective heat dissipation and avoid heat accumulation.

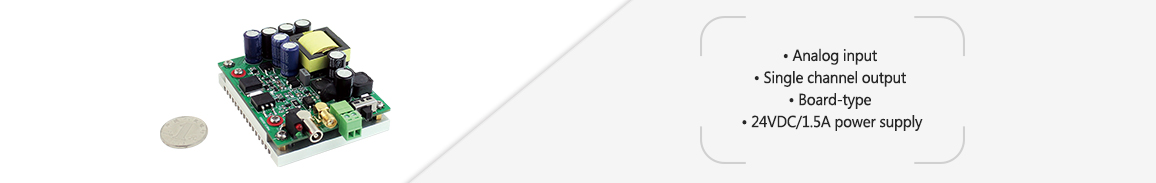

Characteristics
|
|
|
|
|
Analog input |

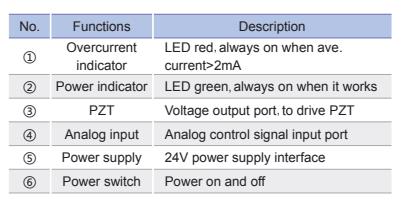

Panel Introduction
|
Panel Introduction
|
| Technical Data | |
|
Type |
E53.A1K-K |
|
Channels |
1 |
|
Nominal analog input(V) |
-1.67~10 |
|
Nominal output |
-20~120(Optional -20~150) |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10 |
|
Ripple(mVpp) |
10(loading 2.2μF) |
|
Control input connector |
SMB |
|
PZT connector |
ZPL.00S.250.HLN |
|
Operating |
0~50 |
|
Output short-circuited |
2 |
|
Overcurrent indication |
Lights on, when ave. current >60mA |
|
Static power(W) |
2 |
|
Size(mm) |
L80×W65×H33 |
|
Mass(kg) |
0.17 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
