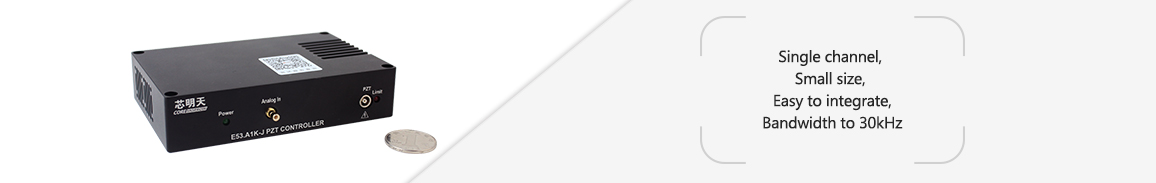

E53.A1K-J Compact Piezo Controller has a size of 123×27.5×80mm^3, with one output, controlled by analog signal. The body has a heat-dissipating area that quickly conducts the heat generated.
Characteristics
|
|
|
|
|
Single channel|

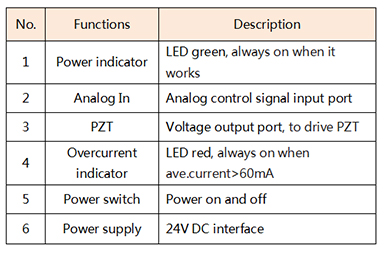

Panel Introduction
|
Panel Introduction
|
| Technical Data | |
|
Type |
E53.A1K-J |
|
Channels |
1 |
|
Nominal analog input(V) |
-1.67~10 |
|
Nominal output voltage(V) |
-20~120(Optional -20~150) |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
30@120V |
|
Ripple(mVpp) |
10(loading 2.2μF) |
|
PZT connector |
ZPL.00S.250.HLN |
|
Control input connector |
SMB |
|
Operating temperature(°C) |
0~50 |
|
Output short-circuited current(mA) |
60 |
|
Overcurrent indication |
Lights on, when ave. current>60mA |
|
Static power(W) |
5 |
|
Size(mm) |
123×27.5×80 |
|
Mass(kg) |
0.32 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
