The 1-channel E53.B1L-K compact piezo controller is an analog signal integrated controller. Its small size and compact structure make it suitable for use in environments with limited space. It has closed-loop servo function and is specially developed and designed for driving piezo products equipped with LVDT sensors. Its body has a heat dissipation area that can quickly dissipate the generated heat. The customized interface is more suitable for industrial applications.
Characteristics
|
|
|
|
 Suitable for driving piezo products equipped with LVDT sensors |
|
|
|

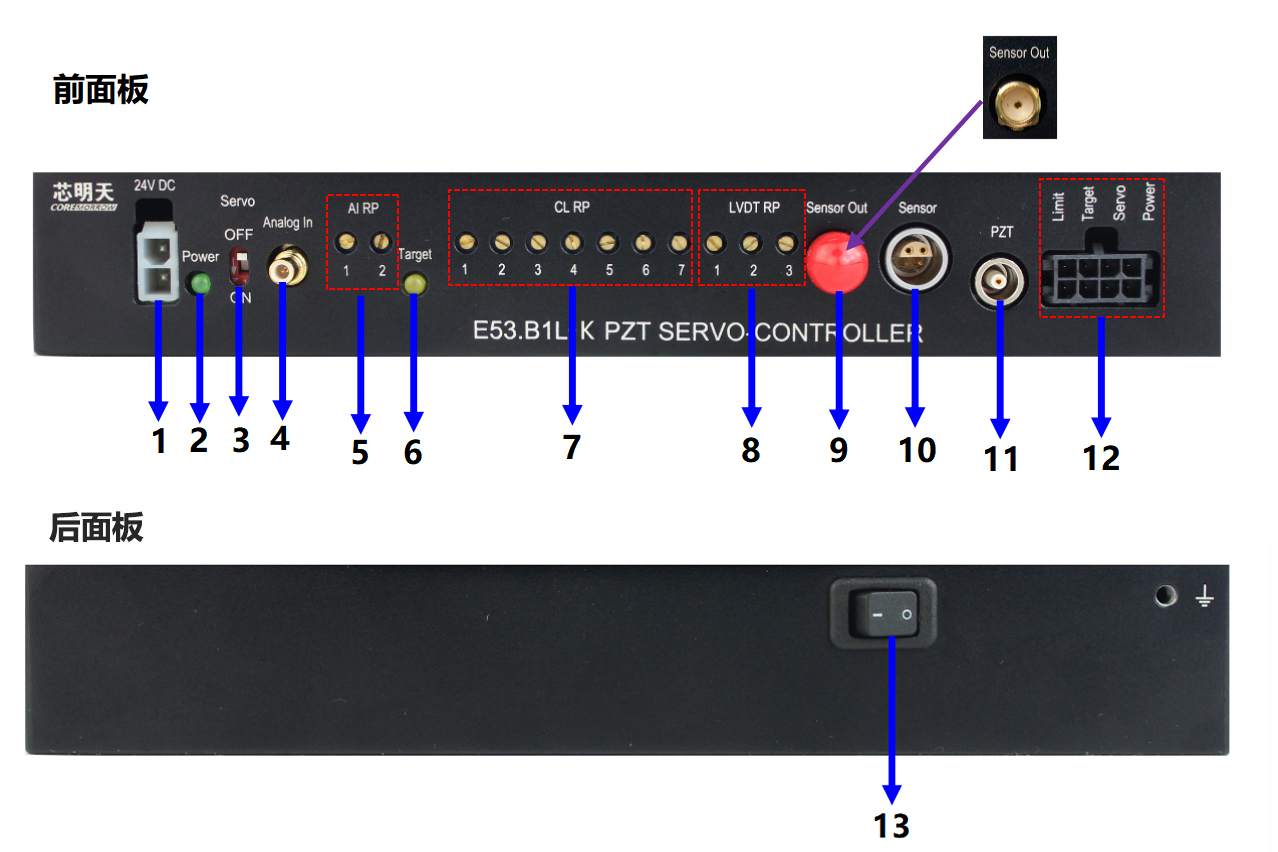

Panel Introduction
|

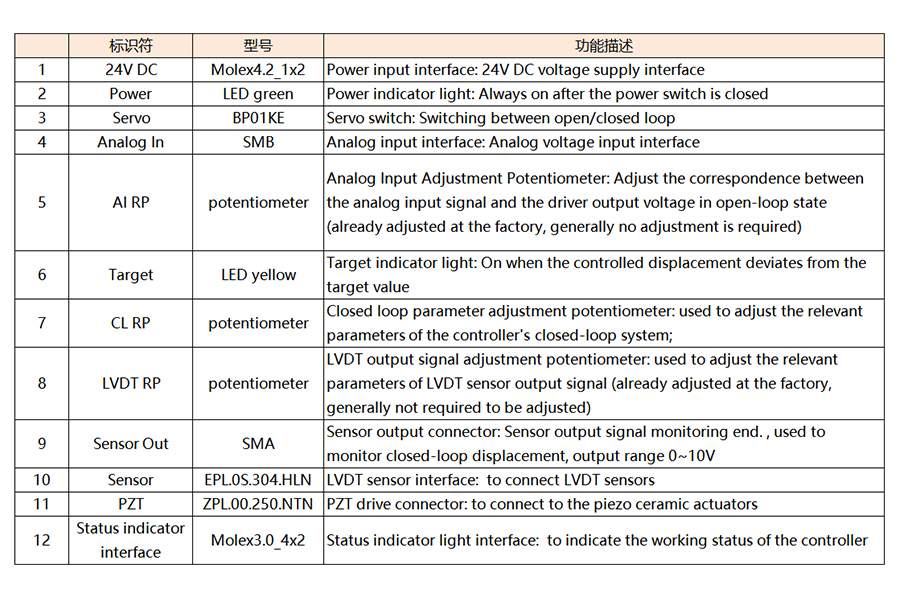

Panel Introduction
|
| Technical Data | |
|
Type |
E53.B1L-K |
|
Channels |
1 |
|
Nominal analog input(V) |
0~10 |
|
Nominal output voltage(V) |
0~150 |
|
Peak current(mA) |
1100 |
|
Ave. current(mA) |
70 |
|
Bandwidth(-3dB, kHz) |
10k |
|
Ripple(mVpp) |
10(loading 2.2μF) |
|
PZT connector |
ZPL.00.250.NTN |
|
Control input connector |
SMB |
|
Servo control |
|
|
Sensor type |
LVDT |
|
Servo |
Analog P-I+band stop+low pass |
|
Sensor connector |
EPL.0S.304.HLN |
|
Sensor out connector |
SMA |
|
Others |
|
|
Operating temperature(°C) |
0~50 |
|
Output short-circuited current (mA) |
70 |
|
Overcurrent indication |
Lights, when ave.current>70mA |
|
Static power(W) |
4 |
|

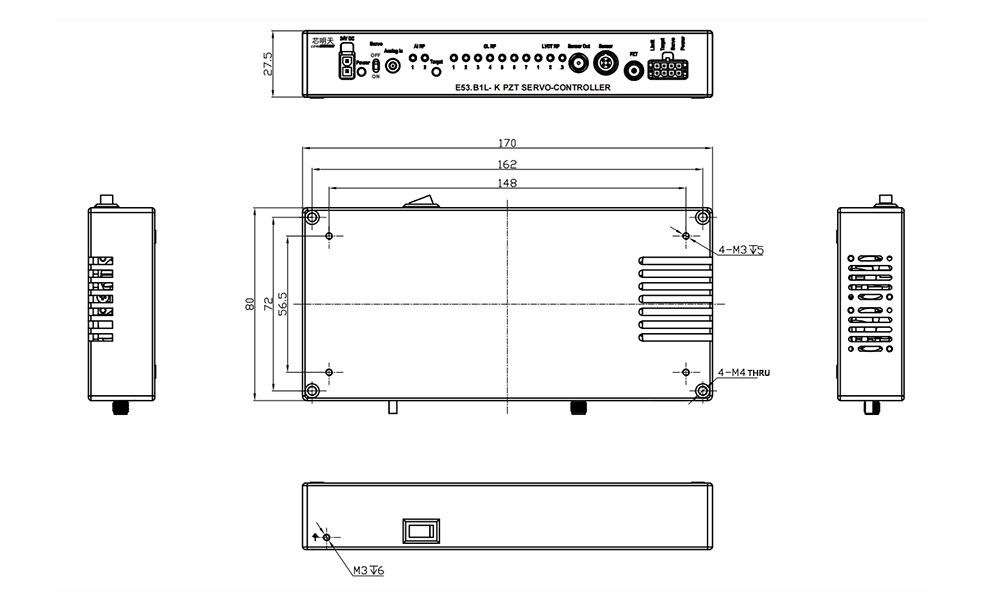

Dimensions(mm) |
L170×H27.5×D80 |
|
Mass(g) |
385 |
|
Power supply |
24V(20~30V) DC 1.5A(36W) |
|
Power interface |
Molex4.2_1x2 |
|
Target indicator |
Molex3.0_4x2 |
