To meet the small-volume application requirements, CoreTomorrow develops E53.C piezo controller. It is a single-channel controller controlled by analog and digital signals. Its the power supply is 24VDC/1.5A. The body has a heat-dissipating area that conducts the heat generated.
Characteristics
|
|
|
|
|
|
Driving Principle
|

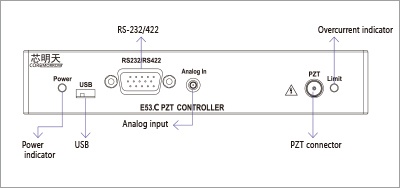

Panel Introduction
|
|
Frequency, Ouput Voltage and Load Curves
|
Selection Guide
|
| Technical data | |
|
Model |
E53.C1K |
|
Channels |
1 |
|
Input voltage (V) |
-1.67~10 |
|
Output voltage (V) |
-20~120(Optional -20~150) |
|
Peak current(A) |
1 |
|
Ave. current(mA) |
60 |
|
Bandwidth(kHz) |
10 |
|
Ripple(mVpp) |
10(@2.2μF) |
|
PZT connector |
ZPL.00S.250.HLN |
|
Input connector |
SMB |
|
Interfaces and operation |
|
|
Communication interface |
USB（TYPE-C），RS-422（D-SUB9）， RS-232（D-SUB9） |
|
Baud rate |
9600、19200、38400、115200 |
|
Software Secondary development baud rate |
9600、19200、38400、57600、76800、115200 、128000、230400、256000 |
|
Processor |
32Bit 168MHz |
|
D/A converter |
16Bit |
|
A/D converter |
16Bit |
|
Others |
|
|
Operating temperature(°C) |
0~50 |
|
Output current, short-circuit (mA) |
60 |
|
Overcurrent indication |
Overcurrent indicator lights when output ave. current > 60mA |
|
Static power(W) |
<5 |
|

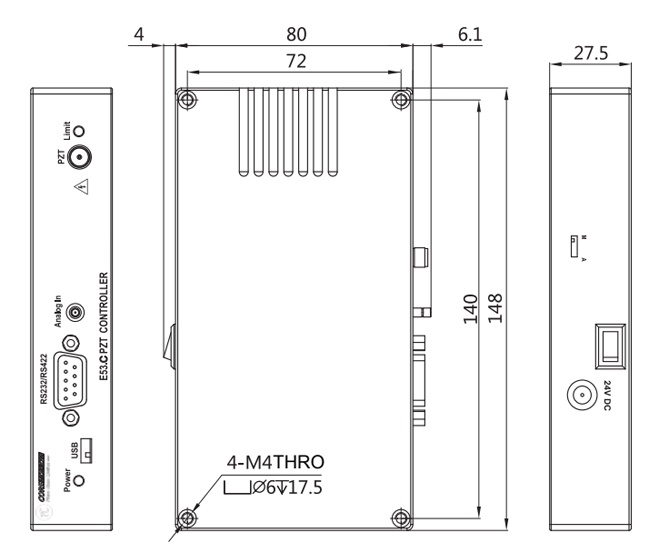

Size(mm) |
148×27.5×80 |
|
Mass(kg) |
0.35 |
|
Power supply |
24V(20~30V)DC1.5A(36W) |
