E01.SC6 Gain RegulatorCurrent Location：Product Homepage >> Compact piezo controller>>E01.SC6 Gain Regulator
gain regulator from CoreMorrow
  • Introduction
  • Feedback

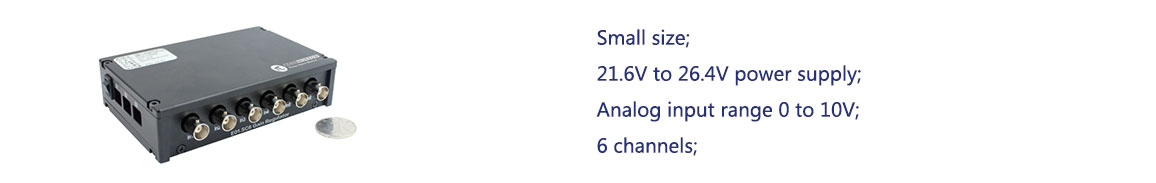

Characteristics


 Small size

 21.6V to 26.4V power supply

 Analog input range 0 to 10V

 6 channels

 4 gain selectors for each channel





 Function

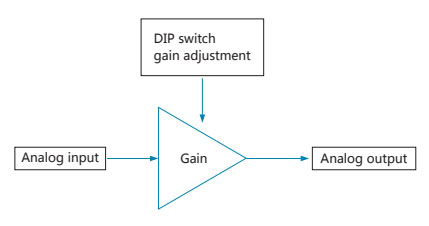

The schematic diagram of gain regulator

Application


 Used for gain adjustment of analog input of piezo controller





Order information


 Gain/adjustment 0~10Voutput (in default)

 Gain/adjustment 0~9.33V output

 Gain/adjustment 0~6.66V output

 Gain/adjustment 0~2.66V output

    Technical Data

Types

E01.SC6

Power supply

Input voltage

24VDC/0.3A(21.6V~26.4V)

Static consumption

<1W

Input

Interface

BNC

Channels

6

Nominal analog input

0 to 10V

Output

Interface

SMB

Channels

6

Nominal analog output range
(4 gain selectors for each channel)

(1) 0-10V;

(2) 0-9.33.V;

(3) 0-6.66.V;

(4) 0-2.66.V;

Appearance

Size

129mm×84mm×32mm

Mass

485g

     Drawings（Click on the picture to enlarge it）
Click on the picture to enlarge the drawing of gain regulator
    Click on the picture to enlarge it
Auto CAD PDF
Step
Specs Sheet
Manual
