E53.B1S-I Compact Piezo Controller’s size is only 64×59×23.5mm^3 , with one output, controlled by analog signal, and suits for industrial applications.

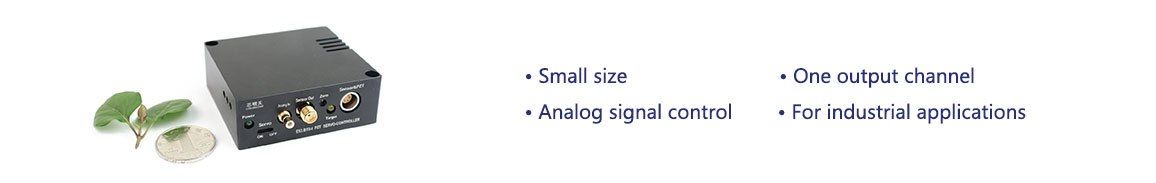

Characteristics
|
|
|
|
|
Small size |

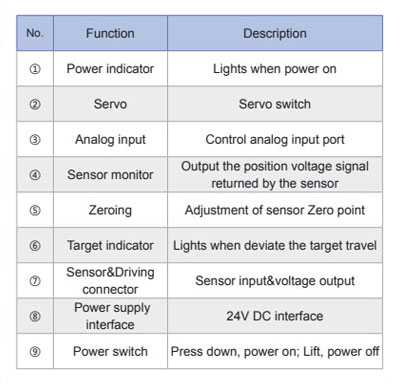

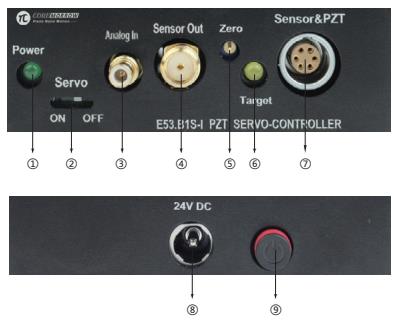

Panel Introduction
|
Panel Introduction
|
| Technical Data | |
|
Type |
E53.B1S-I |
|
Channels |
1 |
|
Nominal input voltage(V) |
-1.67~10 |
|
Output voltage(V) |
-20~120 |
|
Peak current(mA) |
82 |
|
Ave.current(mA) |
27 |
|
Bandwidth(kHz) |
1 |
|
Ripple(mVpp) |
10(@1.8μF load) |
|
Control input connector |
SMB connector |
|
PZT&SENSOR connector |
LEMO-ECG-0B-306 |
|
Sensor type |
SGS |
|
Servo |
Analog P-I |
|
Sensor output connector |
SMA connector |
|
Operating temperature(°C) |
0~50 |
|
Short-circuited current(mA) |
27 |
|
Static dissipation(W) |
<2.4 |
|

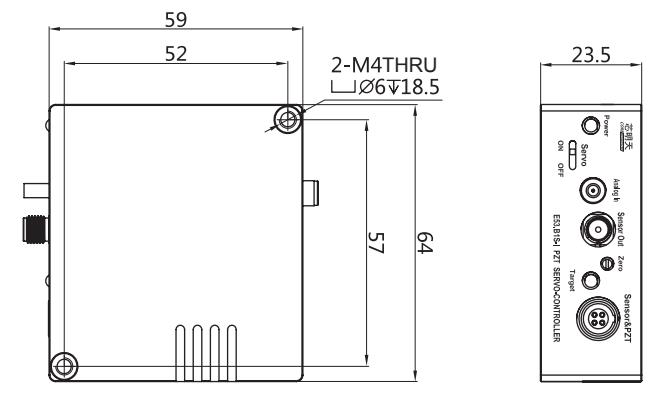

Size(mm3) |
64×59×23.5 |
|
Mass(g) |
97 |
|
Power supply |
24VDC/500mA |
