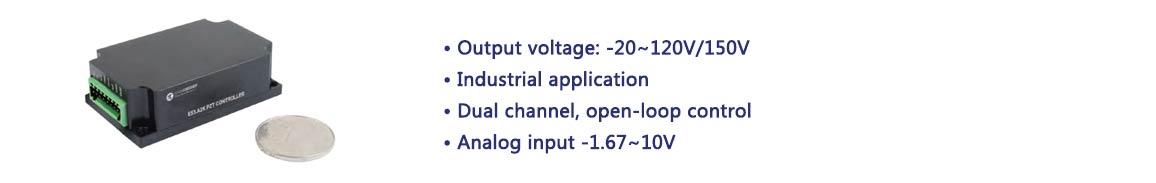

Industrial, small size, dual-channel E53.A2K-J Compact Piezo Controller is specially designed for industrial applications. It features small size, light mass, dualchannel and low dynamics. It adopts analog input control mode and industrial wiring terminals, provides a highly reliable electrical connection, and can meet the high requirements for volume in applications with limited space. Besides, E53.A2K-J can drive two capacitive loads at the same time.
Characteristics
|
|
|
|
|
Output voltage: -20~120V/150V |
Driving Principle The E53.A2K-J piezo amplifier is controlled by external analog signals. The analog input range is 0~10V. After the power amplification of the amplifier, the output voltage is 0~120V, andoptional 0~150V output.
|

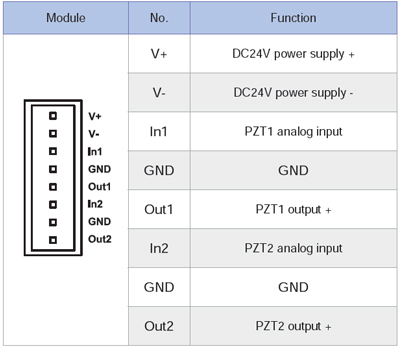

Pin Definition
|
| Technical Data | |
|
Type |
E53.A2K-J |
|
Channels |
2 |
|
Nominal input voltage(V) |
-1.67~10 |
|
Output voltage(V) |
-20~120(Optional -20~150) |
|
Peak current(mA) |
120 |
|
Ave.current(mA) |
17 |
|
Static power(W) |
1 |
|
Bandwidth -3dB(kHz) |
1 |
|
Ripple@2.2μF(mVpp) |
<10 |
|
Interface |
Industrial terminal KF2EDGR-2.54-8P |
|
Operating temperature(°C) |
0~50 |
|

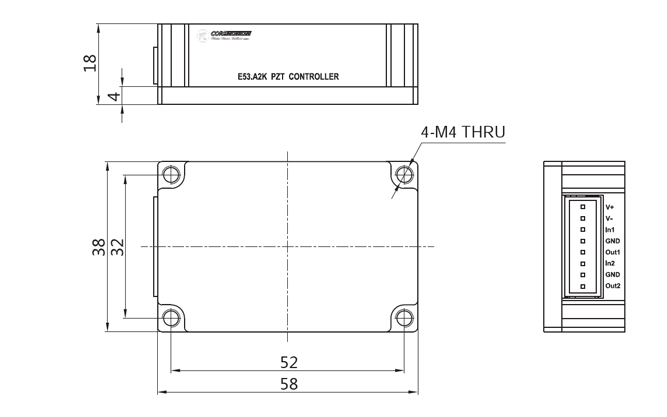

Size(L×W×H, mm) |
58×38×18 |
|
Power supply |
24V DC |
|
Mass(g±5%) |
55 |
|
Heat dissipation |
Shell needs heat dissipation |
