E80.D3S-K Multi-channel Piezo Controller is a digital controller for driving piezo tip/tilt platform, features 3 outputs, and the third channel is constant voltage output that is suitable for differential drive.
Characteristics
|
|
|
|
|
3-channel piezo controller
|

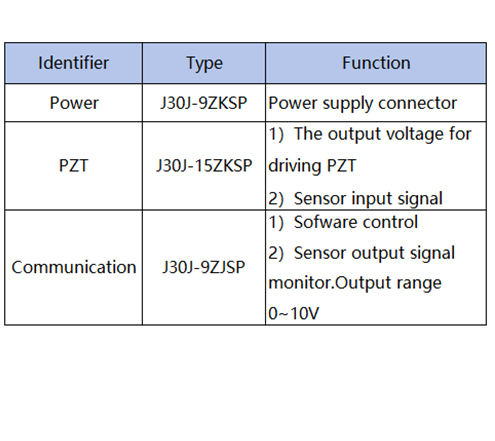

前面板  |
面板介绍  |
| 技术参数 | |
|
Type |
E80.D3S-K |
|
Channels |
3 |
|
Nominal analog input(V) |
- |
|
Nominal output voltage(V) |
-20~120V(optional -20~100/150V), one constant voltage output |
|
Input power(W) |
56 |
|
Peak current(A) |
1/channel |
|
Ave. current(mA) |
70/channel |
|
Bandwidth(Hz) |
10k/channel |
|
Ripple(mV) |
5/channel(2.2μF) |
|
PZT connector |
J30J-15ZKSP |
|
Input connector |
J30J-9ZJSP |
|
Sensor type |
SGS |
|
Servo |
P.I+low pass |
|
Output connector |
J30J-9ZJSP |
|
Communication |
RS-422（J30J-9ZJSP） |
|
Baud rate |
9600、38400、57600、115200 |
|
Settable baud rate for software |
9600、19200、38400、57600、 |
|
Processor |
ARM 32 bit |
|
D/A converter |
16 bit ±10V |
|
A/D converter |
16 bit ±10V |
|
PC software control function |
Output voltage and displacement, waveform control, setting parameters |
|
PC software waveform control |
Programmable/standard |
|
Secondary development |
VC++, Matlab, LabView, DLL dynamic link library functions, etc. |
|
Operating temperature(°C) |
-40~65 |
|
Overcurrent protection |
Yes |
|
Static power(W) |
11 |
|
Cooling |
At the bottom of the shell |
|
Size(mm) |
150x125x30 |
|
Mass(kg) |
0.649 |
|
Power supply |
20~30V DC3A |
|
Control mode |
Digital signal control |
