The N71 mirror mounts can tilt in θx, θy, drived by two linear piezo screw actuators, and the adjusting range can reach ±2°. There are two models to choose from N71.T3K and N71.T4K. The N71.T4K has a mounting diameter of Φ25.4mm, which is suitable for loading Φ25.4mm, Φ25mm optical device. The resolution of N71 can reach 2μrad, and can achieve self-locking when power off.
Characteristics
|
|
|
|
|

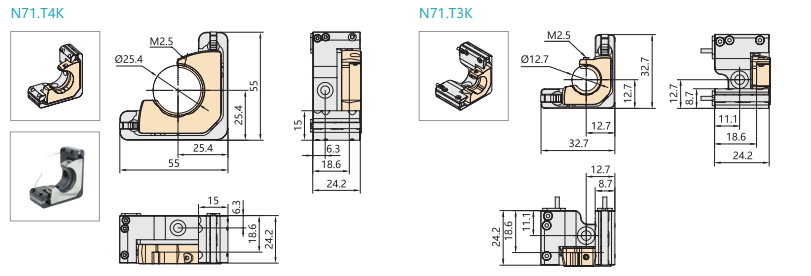

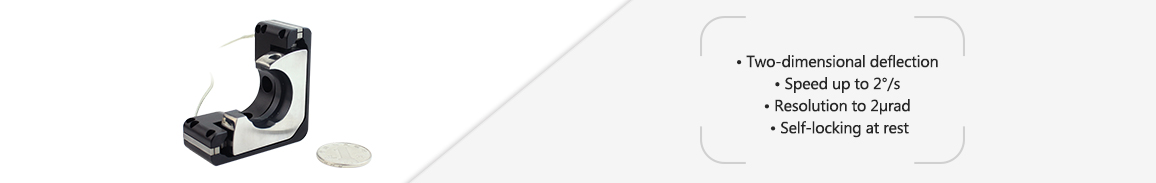

Two-dimensional deflectionApplication
|
|
|
|
|
| Technical Data | |||
|
Type |
N71.T4K-B |
N71.T4K-B |
Units |
|
Active axes |
θx、θy |
θx, θy |
|
|
Tilt range |
±2 |
±2 |
° |
|
Mounting diameter |
25.4 |
25.4 |
mm |
|
Speed limit |
2 |
2 |
° /s±20% |
|
Resolution |
2 |
2 |
μrad±20% |
|
Operating temperature |
10~40 |
10~40 |
℃ |
|
Storage Tempreture |
-10~40 |
-10~40 |
℃ |
|
Mass(with cable) |
150 |
150 |
g±10% |
|
Material |
Al, Steel |
Al, Steel |
|
|
PZT connector |
RJ11 |
RJ11 |
|
|
Cable length |
2 |
1.5 |
m±10mm |
|
Recommended controller |
E53.C4K-H |
E53.C4K-H |
|
