T60N81K13 Optical Mount with Piezo Linear ActuatorCurrent Location：Product Homepage >> Piezo actuator/stage>>T60N81K13 Optical Mount with Piezo Linear Actuator

Introduction
Feedback

T60N81K13 optical mount with piezo linear actuator can move in θx, θy two-dimensional deflection, and the adjusting range can reach ±4°. Each axis is drived by a single piezo linear motor, and there is a common deflection axis between the two axes, and no coupling.

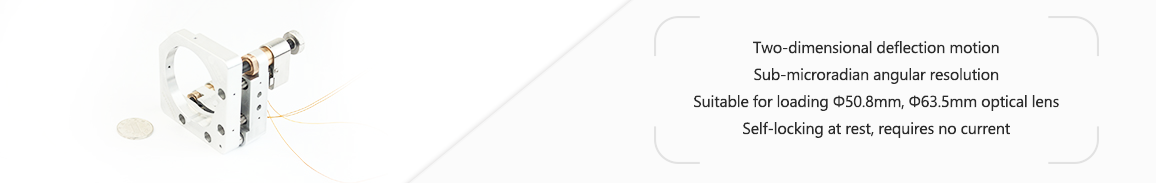

Characteristics

Two-dimensional deflection motion	Sub-microradian angular resolution	Suitable for loading Φ50.8mm, Φ63.5mm optical lens
Self-locking at rest, requires no current	More flexible with motorized operation

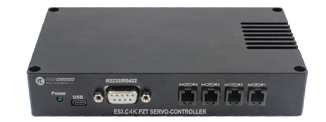

Recommended controller

E53.C4K-H

Technical Data
Type	T60N81K13	Units
Mirror diameter	63.5	mm
Active axes	θx、θy
Tilt range	±4	°
Resolution	0.4	μrad
Motorized axes	2	pcs
Actuator	Piezo screw actuator
Operating temperature	10~40	℃
Mass	300	g±5%
Recommended controller	E53.C4K-H
PZT connector	RJ11

Note: UHV version is available. Custom closed-loop version is available.

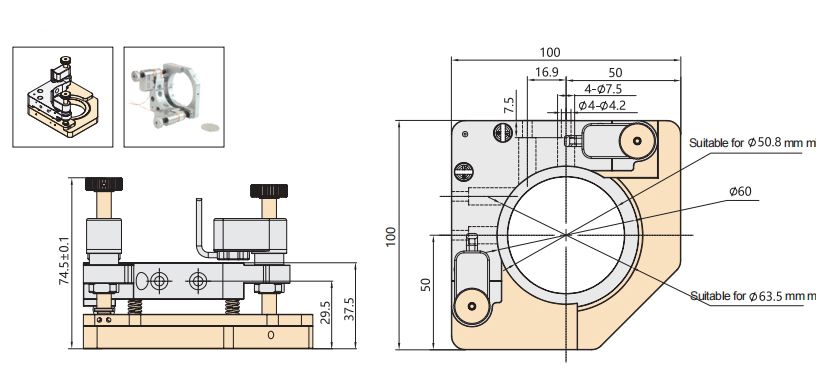

Drawing （Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
