The N81K8ZT25 optical mount with piezo linear actuator features three linear actuation points, each driven by a piezo actuator, enabling θx and θy deflection and linear motion. Its deflection angle can be up to ±5°/axis, and the linear travel can be up to 3.5mm. It can be applied to different applications under various conditions.
Characteristics
|
|
|
|
|
|
|
|
|
|
Recommended controller
|
| Technical Data | ||
|
Type |
N81K8ZT25 |
Units |
|
Active axes |
θx、θy、Z |
|
|
Mounting diameter |
25.4 | mm |
|
Actuator number |
3 |
个 |
|
Tilt range |
±5 |
°/轴 |
|
Linear travel |
3.5 |
mm |
|
Angular resolution |
0.7 |
μrad |
|
Linear resolution |
＜20 |
nm |
|
Load capacity |
10 |
N |
| Actuator type |
Piezo screw actuator |
|
| Operating temperature | 0~40 | ℃ |
|
Mass |
290 |
g |
| PZT connector | RJ11 |
|

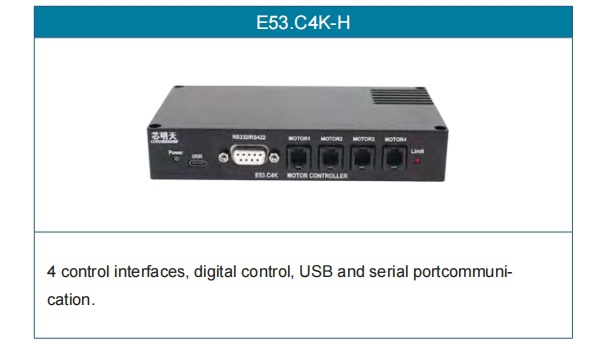

| Recommended controller |
E53.C4K-H |
|
