N91.XYZUR0K Five-axis Piezo Motor StageCurrent Location：Product Homepage >> Piezo actuator/stage>>N91.XYZUR0K Five-axis Piezo Motor Stage

Introduction
Feedback

The N91.XYZUR0K five-axis piezo motor stage is a high-precision stage capable of moving in X, Y, Z, θy, and θz. It can achieve a displacement of XY 4mm and Z 2mm and a deflection stroke of ±4° per axis in θy and θz. This motion platform is equipped with the CoreMorrow E53 series small size piezo motor controller, with precision algorithm, to complete the high-precision motion control of five axes.

Characteristics

Active axes of X, Y, Z, θy, θz	Linear travel of XY 4mm and Z 2mm	Deflection travel up to ±4°/axis	Self-locking at rest, requires no current
Load capacity up to 1.2kg	Vacuum version customizable

Technical Data
Type	N91.XYZUR0K	Units
Active axes	X、Y、Z、θy、θz
Travel in XYZ	XY4/Z2	mm
Travel in θxθz	±4/axis	°
XYZ resolution	＜30	nm
θxθz resolution	0.2	μrad
Operating temperature	0~40	℃
Material	Steel, Al
Load capacity(horizontal)	1.2	kg
Mass	0.93	kg±5%
Cable length	1.5	m±10mm
PZT connector	RJ11
Recommended Controllers	E53.C4K-H/E53.C1K-K

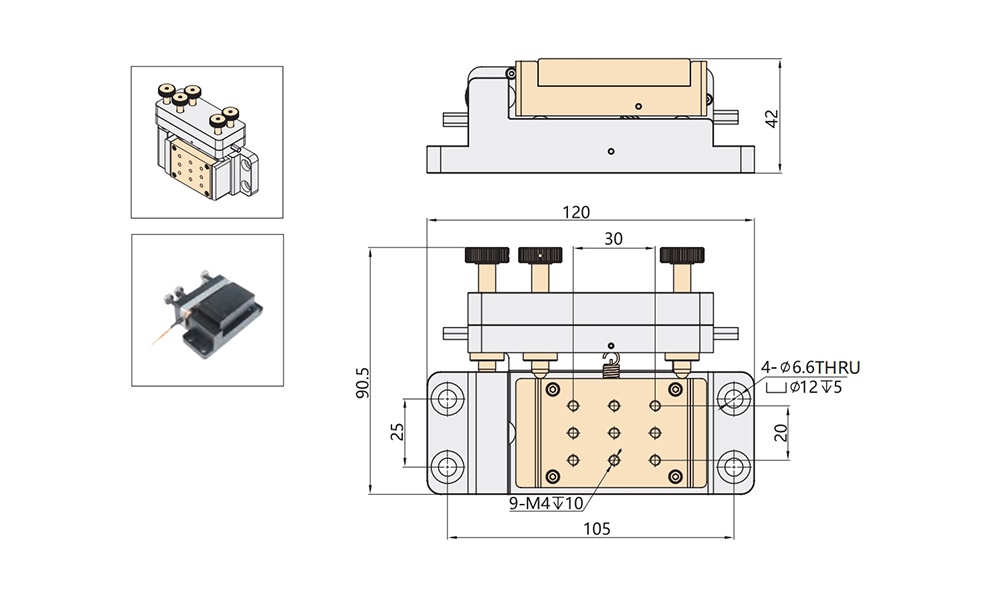

Drawing （Click on the picture to enlarge it）

Downloads
Auto CAD PDF
Step
Specs Sheet
