The P33S2T25 macro-micro composite piezo steering stage is composed of the CoreMorrow high-resolution and high-dynamic P33.T2SF piezo tip/tilt platform and a manually adjustable mirror frame. The manual deflection displacement can reach ±6°/axis, and the piezo deflection displacement can reach 3.5mrad/axis. The overall stage can achieve a large angle travel, and a resolution of 0.05μrad, which is suitable for large angle and high-precision applications.

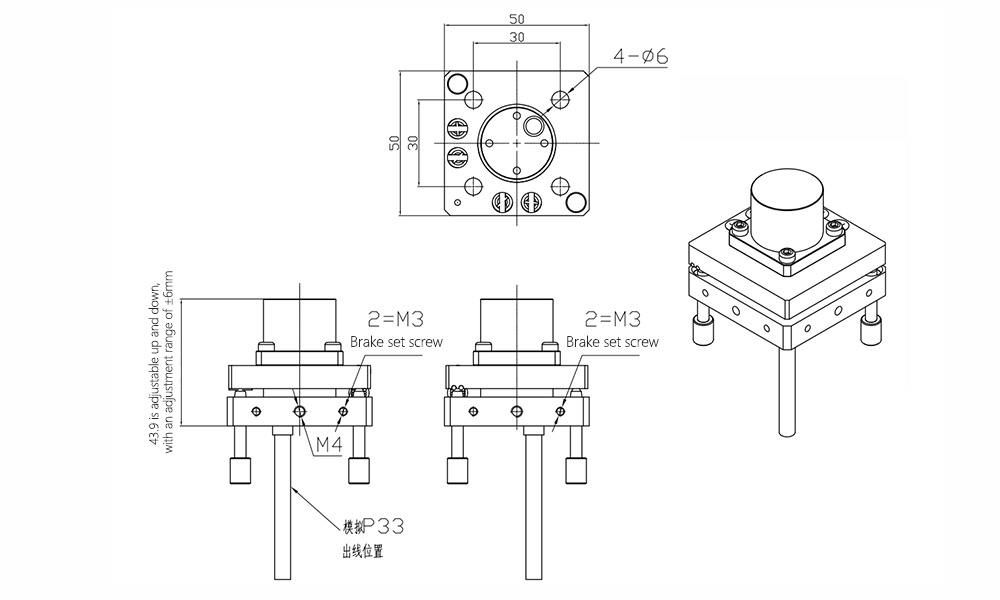

Characteristics
|
|
|
|
|
| Technical Data | ||
|
Type |
P33S2T25 |
Units |
|
Active axes |
θx、θy |
|
|
Manual adjustment angle |
12 | ° |
|
Piezo drive |
||
|
Active axes |
θx、θy |
|
|
Drive control |
3 driving channels,
2 sensing channels
|
|
|
Nominal tilt angle(0~120V) |
2.8/axis（≈578''） |
mrad±10% |
|
Max.tilt angle(0~150V) |
3.5/axis（≈722''） |
mrad±10% |
|
Sensor |
SGS |
|
|
Resolution |
0.05（≈0.01''） |
μrad |
|
Linearity |
θx0.06/θy0.09 |
%F.S. |
|
Repeatability |
θx0.08/θy0.06 |
%F.S. |
|
Unloaded resonant frequency |
θx2700/θy4700 |
Hz±20% |
|
Resonant frequency@36g |
θx1780/θy1850 |
Hz±20% |
|
Step time |
5@36g |
ms±20% |
|
El.capacitance |
3.6/axis |
μF±20% |
|
Cable length |
1.5 |
m±10mm |
|
Others |
||
|
Material |
Steel, Al |
|
|
Mass(total) |
300(with cable) |
g±5% |
