The N55.Z10 series linear piezo motor stage can achieve a displacement of 11mm in the Z direction. Through piezo stick-slip micro-drive technology, the micro-deformation generated by piezo actuator is converted into a linear millimeter-level stroke. This piezo motor stage is small in size and compact in structure, with dimensions of only 60×52×37mm^3, making it very easy to integrate into precision equipment. Both open and closed-loop versions are available. The closed-loop version is equipped with a built-in grating sensor, which can provide real-time feedback on displacement information and achieve high-precision positioning.
|

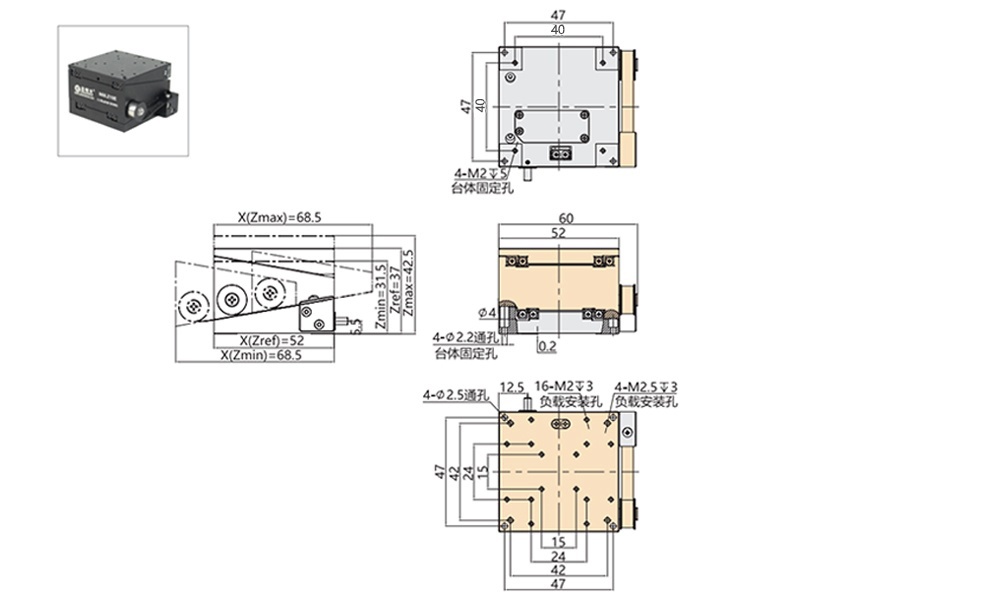

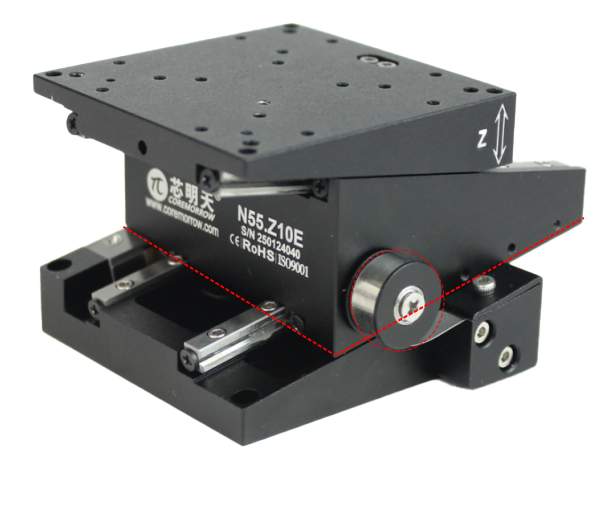

Sports surface
|
Characteristics
|
|
|
|
|
|
|
|
||
| Technical Data | ||||
|
Type |
E-Closed loop
K-Open loop |
N55.Z10E |
N55.Z10K |
Units |
|
Active axes |
Z |
Z |
|
|
|
Sensor type |
Grating sensor |
- |
|
|
|
Nominal travel range |
10 or ±5 |
10 or ±5 |
mm | |
|
Speed limit |
0.5 |
0.5 |
mm/s±20% | |
|
Resolution |
5 |
5 |
nm±20% | |
| Linearity | 2 | - | μm | |
| Repeatability | 0.2 | - | μm | |
|
Load capacity |
Horizontal |
1 |
1 |
kg |
|
Operating temperature |
0~50 |
0~50 |
℃ |
|
|
Cable length |
1.5 |
1.5 |
m±10mm |
|
|
Material |
Al, Steel | Al, Steel |
|
|
| Mass |
275 |
275 |
g±10% |
|
|
Recommended Controller |
E53.D1E-J |
E53.C1K-J |
|
|
|
|
|
