N31 linear piezoelectric motor adopts stick-slip principle, and piezo step direct drive. The linear motion range can be 6、10、25、50 or 100mm, and the resolution can reach sub-nanometer level. Closed-loop servo sensors (grating sensor) for high positioning accuracy and motion platform are available.
Characteristics
|
|
|
|
|
|
|
|
|
|
|

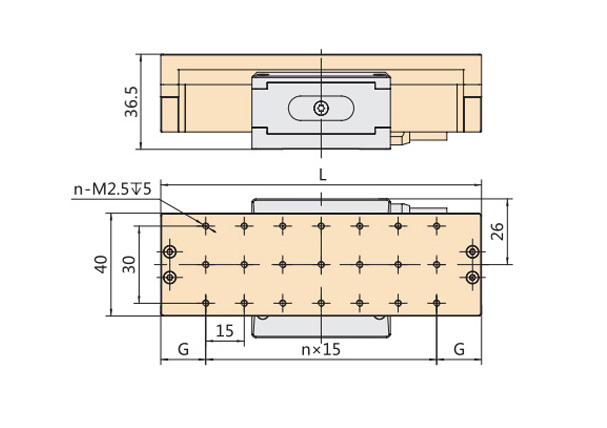

Optional Motion Platform
|

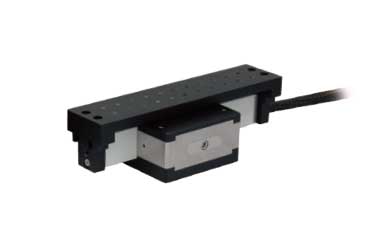

N31.100E
|

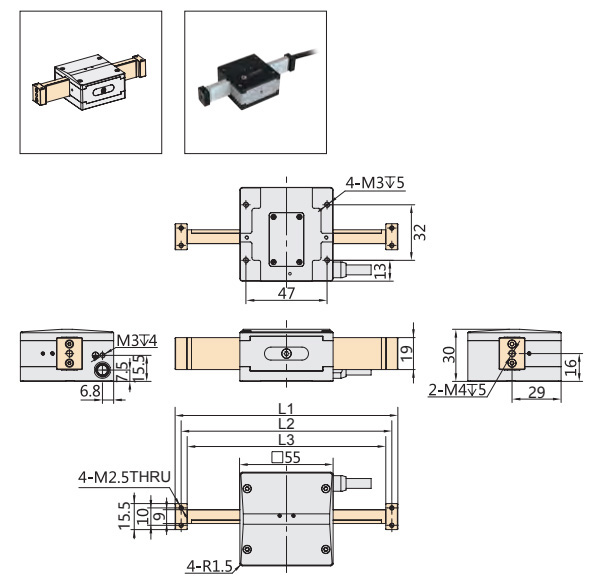

Structure Priciple
|
| Technical data | |||||||
|
Type |
E-Closed loop |
N31.X6E N31.X6K |
N31.X10E N31.X10K |
N31.X25E N31.X25K |
N31.X50E N31.X50K |
N31.100E N31.100K |
Units |
|
Active axes |
X |
X |
X |
X |
X |
|
|
|
Integrated sensor |
grating sensor/- |
grating sensor/- |
grating sensor |
grating sensor/- |
grating sensor/- |
|
|
|
Ttravel range |
6or ±3 |
10or ±5 |
25 or ±12.5 |
55 or ±25 |
100 or ±50 |
mm±0.5mm |
|
|
Speed limit |
5 |
5 |
5 |
5 |
5 |
mm/s |
|
|
Resolution |
＜50/1 |
＜50/1 |
＜50/1 |
＜50/1 |
＜50/1 |
nm |
|
|
Linearity |
1/- |
1/- |
1/- |
1.5/- |
2/- |
μm |
|
|
Repeatability |
1 |
- |
1.5 |
- |
2 |
μm |
|
|
Push/pull force |
30 |
30 |
30 |
30 |
30 |
N |
|
|
Holding force |
40 |
40 |
40 |
40 |
40 |
N |
|
|
Max load (horizontal |
5 |
5 |
5 |
5 |
5 |
kg |
|
|
Operating temperature |
0~50 |
0~50 |
0~50 |
0~50 |
0~50 |
℃ |
|
|
Mass with cable |
545 |
555 |
565 |
590 |
640 |
g±5% |
|
|
Material |
Al,Steel |
Al,Steel |
Al,Steel |
Al,Steel |
Al,Steel |
|
|
|
Cable length |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
m±10mm |
|
|
Recommended controller |
|
||||||
|
Specs Sheet |
|
|
|
|
|
||
