E66.A2K-H Board-Type Piezo Controller (Driving N69 Rotation Stage)Current Location：Product Homepage >> Piezo motor controller>>E66.A2K-H Board-Type Piezo Controller (Driving N69 Rotation Stage)
E66.A2K-H Board-Type Piezo Controller
  • Introduction
  • Feedback

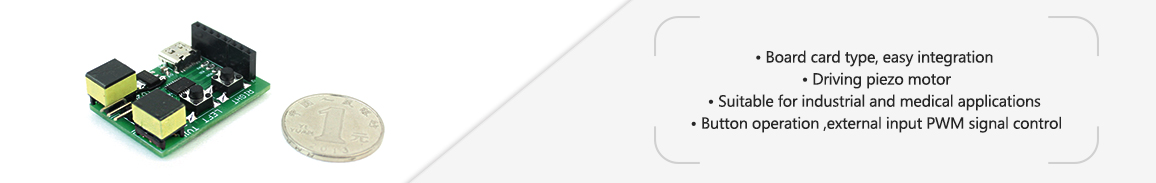

E66.A2K-H Piezo Controller is designed to drive N69 piezo motor driven rotation stage, It is small in size and easy integration, ideal for space-limited applications.It can be controlled by button operation or external input PWM signal.


Characteristics


 Board card type, easy integration

 Driving piezo motor

  Suitable for industrial and medical applications

 Button operation ,external input PWM signal control

    Technical Data

Type

E66.A2K-H

Units

Channels

1


Control mode

Open loop ,button operation, external input PWM signal control


Power supply

+5V/1A

V

Static power

<0.03

W

Processor

32bit 48M


Operating temperature

0~50

℃

PZT connector

Single row pressure needle,2.54mm


Size

38×27×12

mm

Mass

11

g±5%
    Drawing （Click on the picture to enlarge it）
None
    Downloads
Auto CAD PDF
Step
Specs Sheet
Manual
