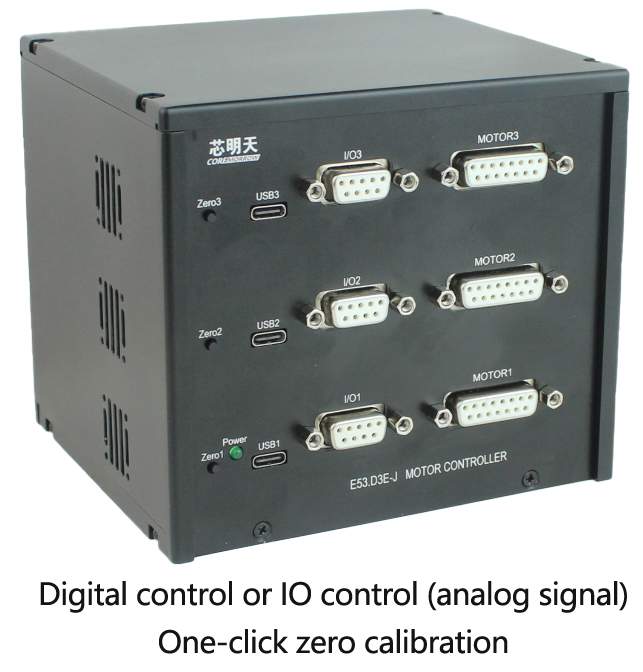

The three-channel E53.D3E-J piezo motor controller is specially designed for driving piezo motors and can drive three piezo motors simultaneously. Its control mode can be selected as digital control or IO control. When digitally controlled, the operation information is set in the upper computer software. When controlled by IO, the movement and stop of the piezo motor, the total number of steps, the direction of movement, and the displacement of a single step are controlled through the input voltage signal connected to the IO port. The controller adopts shell heat dissipation, and the installation environment must ensure sufficient heat dissipation space. It can customize according to the requirements.
Characteristics
|
|
|
|
|
|

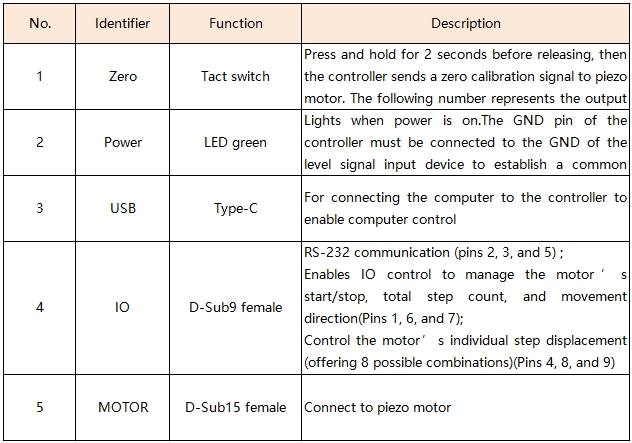

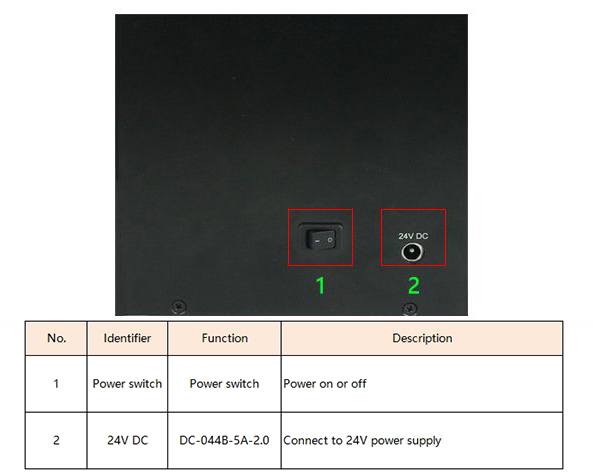

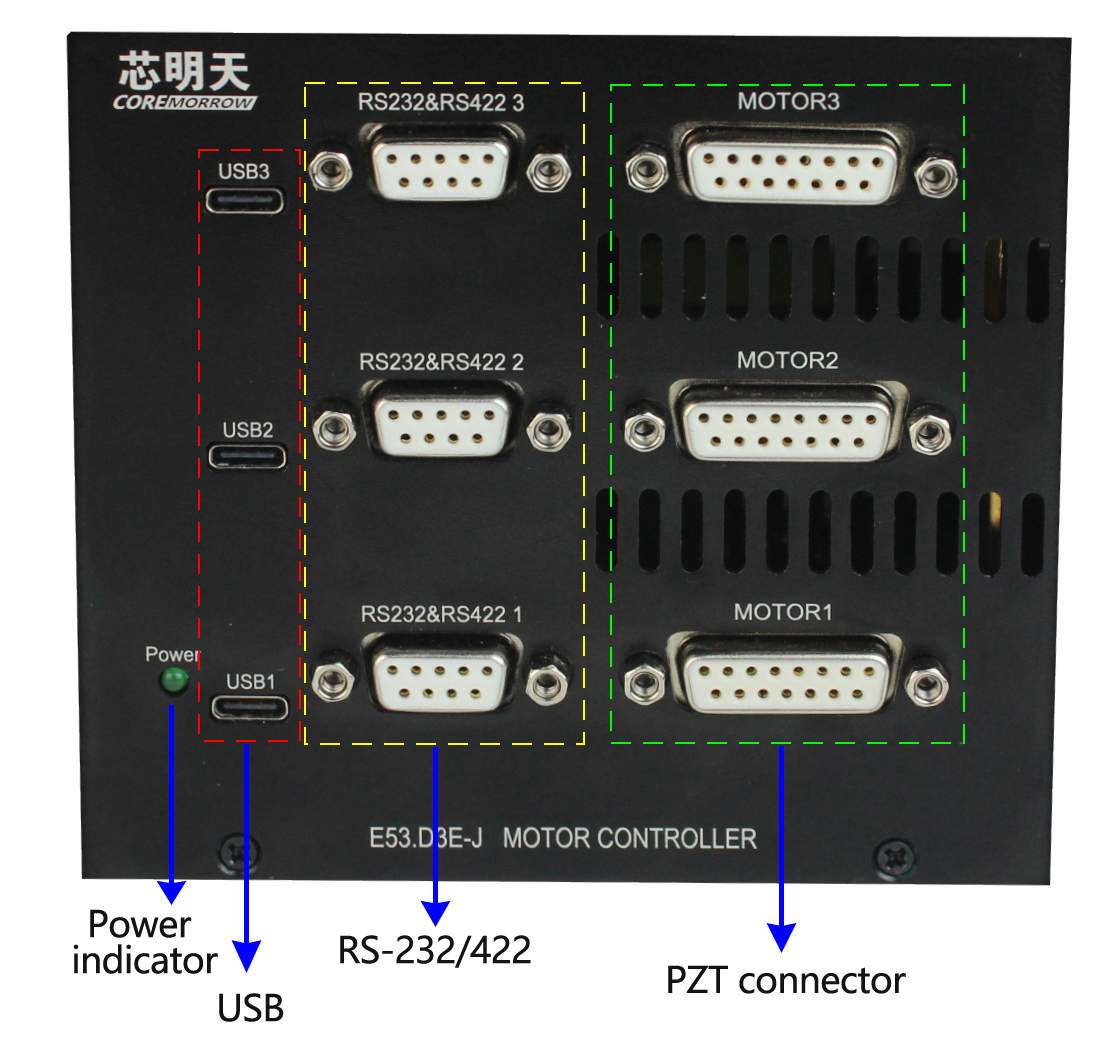

Panel Introduction
|
Panel Introduction
|
Panel Introduction
|
|
Panel Introduction
|
Panel Introduction
|
| Technical Data | ||
|
Type |
E53.D3E-J |
Units |
|
Servo control |
Servo control |
|
|
Channels |
3 |
|
|
Power supply |
24VDC/5A(20~30V) |
|
|
Static dissipation |
13 |
W |
|
Processor |
32bit 480MHz |
|
|
D/A converter |
16bit |
|
|
Communication interface |
Type-C、RS-232 |
|
|
Rated output |
9 |
W |
|
Operating temperature |
0~50 |
℃ |

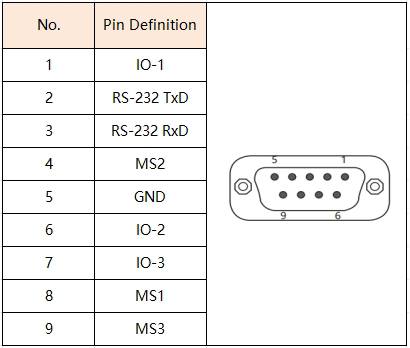

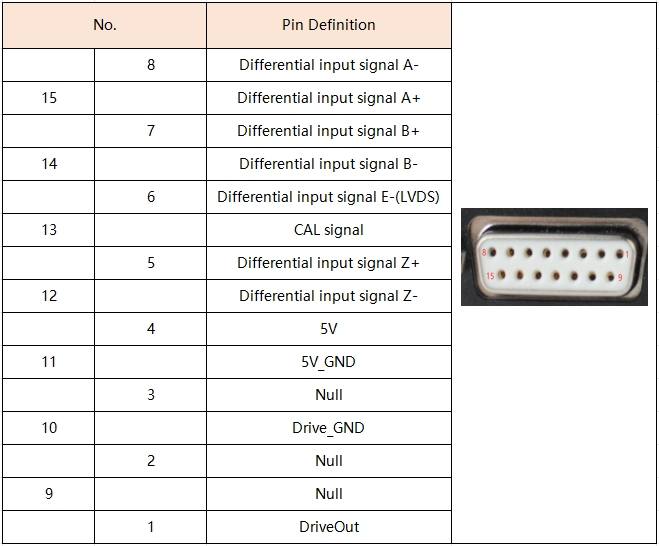

| PZT connector | DB15 |
|
| Communication connector |
DB9、Type-C |
|
|
Size |
128×113×109 |
mm3 |
|
Mass |
1375 |
g±5% |
| Control way |
Digital signal/IO control(analog signal) |
|
