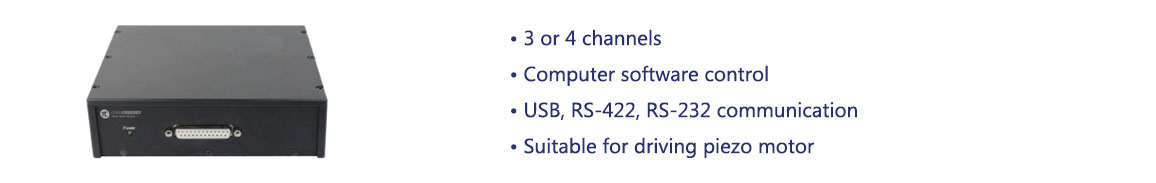

- Introduction
- Feedback
Characteristics
|
|
|
|
|
|
Driving N31 Linear Piezo Motor
|
| Technical Data | ||||
|
Type |
E71.D4E-H |
E71.C4K-H |
E71.D3E-J |
E71.C3K-J |
|
Servo control |
Servo control |
Open loop |
Servo control |
Open loop |
|
Power supply |
24VDC/4A(20V～30V) |
24VDC/4A(20V～30V) |
24VDC/4A(20V～30V) |
24VDC/4A(20V～30V) |
|
Static power consumption (W) |
<10 |
<10 |
<10 |
<10 |
|
Master-Control |
||||
|
Processor |
32bit 480MHz |
32bit 480MHz |
32bit 168MHz |
32bit 168MHz |
|
D/A converter |
16bit |
16bit |
16bit |
16bit |
|
Serial port baud rate |
115200 |
115200 |
115200 |
115200 |
|
Communication Interface |
USB、RS-422、RS-232 |
USB、RS-422、RS-232 |
USB、RS-422、RS-232 |
USB、RS-422、RS-232 |
|
Drive |
||||
|
Peak current (A) |
1 |
1 |
1 |
1 |
|
Average current (mA) |
75 |
75 |
75 |
75 |
|
Ripple (mVpp) |
10(@ 2.2μF) |
10(@ 2.2μF) |
10(@ 2.2μF) |
10(@ 2.2μF) |
|
Rated output power (W) |
50 |
50 |
50 |
50 |
|
Operating temperature range (°C) |
0~50 |
0~50 |
0~50 |
0~50 |
|
Output short-circuit current (mA) |
60 |
60 |
60 |
60 |
|
Appearance |
||||
|
PZT connector |
DB25 |
DB25 |
DB37 |
DB37 |
|
Communication connector |
DB9、Type-C |
DB9、Type-C |
DB9、MicroUSB |
DB9、MicroUSB |
|
Size（mm3） |
162.5×162×45.5 |
162.5×162×45.5 |
162.5×162×45.5 |
162.5×162×45.5 |
|
Mass (kg) |
1.3 |
1.3 |
1.3 |
1.3 |
