P77A.S/K23 series of piezo phase shifters are designed for optical detection phase shift applications with a travel range of up to 475μm, making them ideal for optical inspection equipment for lenses.

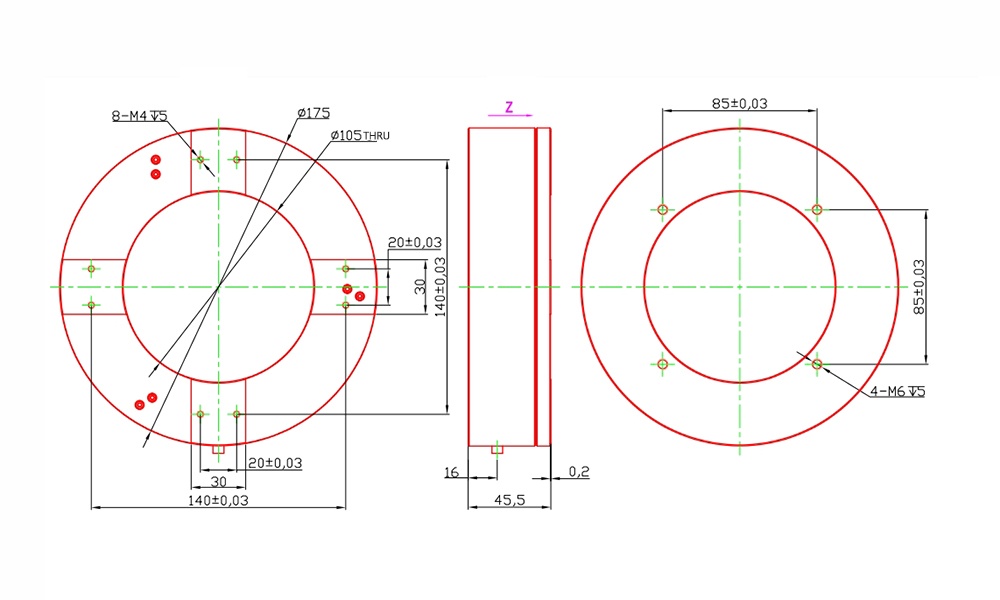

Characteristics
|
|
|
|
|
| Technical data | |||||
|
Type |
K-Open loop
S-Closed loop |
P77A.300S105 |
P77A.300K105
|
Units |
|
|
Active axes |
Z |
Z |
|
||
|
Sensor type |
SGS |
- |
|
||
|
Nominal travel range(0~120V) |
380 |
380 |
μm±10% |
||
|
Travel range(0~150V) |
475 |
475 |
μm±10% |
||
|
Aperture |
Φ105 |
Φ105 |
mm |
||
| OD |
Φ175 |
Φ175 |
mm | ||
| Height | 45.5 | 45.5 | mm | ||
|
Resolution |
15 |
15 |
nm |
||
|
Pitch/yaw/roll |
＜25 |
＜25 |
μrad |
||
|
Unloaded resonant frequency |
130 |
130 |
Hz±20% |
||
|
Unloaded Step time |
80@500g |
- |
ms±20% |
||
|
Load capacity |
Horizontal | 0.5 |
0.5 |
kg |
|
| Lateral | 0.05 | 0.05 | |||
| Inverted | 0.05 | 0.05 | |||
|
El. Capacitance |
30.6 | 30.6 |
μF±20% |
||
|
Material |
Al, Steel | Al, Steel |
|
||
|
Mass |
3000(Cable included) |
3000(Cable included) |
g±5% |
||
|
Operating temperature |
-20~65 |
-20~65 |
℃ |
||
|
Cable length |
1.5 |
1.5 |
m±10mm |
||
| Mounting Method |
Horizontal Mounting |
Vertical Mounting |
Inverted Mounting |
| Definition |
Place the PZT platform horizontally for installation, with the moving surface located above the PZT platform and parallel to the horizontal plane.
PS: Default direction for carrying capacity in the parameter table
|
Place and install the PZT platform vertically, with the moving surface parallel to the direction of gravity
|
Place the PZT platform horizontally, but the moving surface is located below the PZT platform |
| Diagram |
 |
 |
 |
| Note |
When the mounting method is selected as vertical mounting, pay attention to the outlet port |
||
