P12.XY100 is XY-axes scanning stage. The aperture diameter could be selected as 25mm(35mm is optional), which is suitable for applications such as microscopy. The piezo scanner could realize single-axis displacement of 100μm. Integrated structure makes multi-dimensional motion uncoupled and could be selected in various specifications to meet the needs of different applications.
Characteristics
XY axes |
Max stroke to 100μm |
Max load to 0.7kg |
With Ø25 or Ø35 aperture |
Appearance |
P12.X moving part |
Amplified-driving |
1~3 - Axis Scanning Stage P12 piezo nanopositioning stage is a 1~3-axis linear piezo scanning stage, including X, Z, XY, XZ, XYZ motion versions. A variety of specifications and models for choice with optional aperture diameter of 25mm or 35mm. |

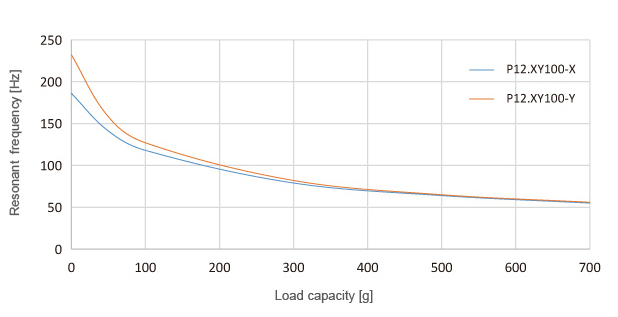

Freqency VS Load Curve |
Application case-Inverted Piezo Scanner |

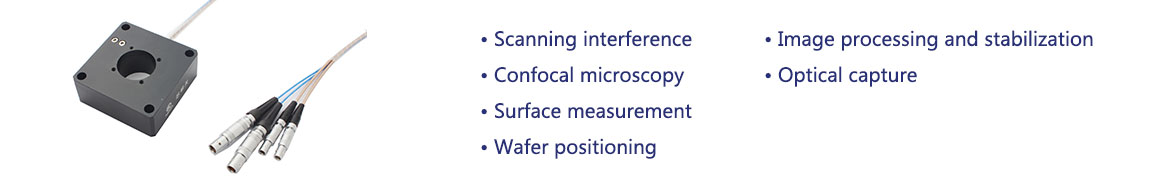

Applications
Scanning interference |
Confocal microscopy |
Wafer positioning |
Surface measurement |
Image processing and stabilization |
Optical capture |
|
|
Technical data | ||||
Models |
S-Closed loop K-Open loop |
P12.XY100S P12.XY100K |
Units |
|
Active axes |
X、Y |
|
||
Drive control |
2 driving channels 2 sensing channels |
|
||
Travel range(0~120V) |
80/axis |
μm±10% |
||
Travel range(0~150V) |
100/axis |
μm±10% |
||
Integrated sensor |
SGS/- |
|
||
Aperture |
Ø25/Ø35 |
mm |
||
Closed/open loop resolution |
3/1 |
nm |
||
Closed-loop linearity |
0.1/- |
%F.S |
||
Repeatability |
0.05/- |
%F.S |
||
Pitch/Yaw/Roll |
<10 |
μrad |
||
Push/pull force capacity |
25/8 |
N |
||
Stiffness |
X0.25/Y0.3 |
N/μm±20% |
||
Unloaded resonant frequency |
X180/Y230 |
Hz±20% |
||
Closed/open-loop unloaded Step time |
15/0.8 |
ms±20% |
||
Closed-loop operating frequency(-3dB) |
50(unloaded) |
Hz±20% |
||
Load capacity |
0.7 |
kg |
||
Electrical capacitance |
1.8/axis |
μF±20% |
||
Material |
Steel, Aluminum |
|
||
Mass |
200 |
g±5% |
Note: Max driving voltage could be -20V~150V, Recommended voltage 0~120V for long-term operation to extend lifetime.
Technical data are measured by CoreMorrow E00/E01 series piezo controller.
|
|
|
|
|
