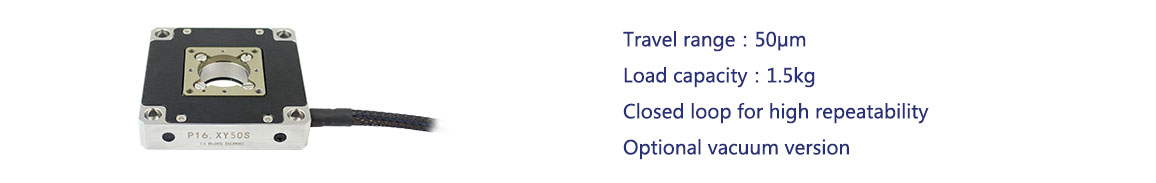

P16.XY50 series piezoelectric scanner is an XY-axis translation scanning platform adopting amplifying mechanism. The center through-hole aperture is 20mm. The series of scanners are available in 50μm travels, and the open-loop/closed loop is optional.
Characteristics
Travel to 50μm |
Load capacity to 1.5kg |
Aperture:Ø 20mm |
Closed loop for higher repeatability |
Optional open/closed loop |
|
|
|
Appearance |
Moving-part |
Amplified-driving |
High Stiffness Large Load Capacity
P16.XY50 piezo scanner adopts principle of mechanism amplification design and built-in high-performance piezo ceramic. It can realize travel of 50μm. The integrated structure design has no coupling of XY axis motion. |
Freqency VS Load Curve |
Application Cases-XY Adjustment P16.XY piezo scanner is used in optical path adjustment experiment with its large load and high frequency. P16 carrying mirror frame to move precisely in XY axis. |
Applications
Microscopic imaging |
Optical |
Precision positioning |
Surface inspection |
Micro-operation |
Interference/metering |
|
|
Technical data | |||
Models |
S-Closed loop |
P16.XY50S P16.XY50K |
Units |
Active axis |
X、Y |
|
|
Driving channels |
2 driving channels |
|
|
Travel range(0~120V) |
40/axis |
μm±10% |
|
Travel range(0~150V) |
50/axis |
μm±10% |
|
Sensor type |
SGS/- |
|
|
Aperture size |
Ø20 |
mm |
|
Resolution |
1.5/0.5 |
nm |
|
Linearity |
1/- |
%F.S |
|
Repeatability |
1/- |
%F.S |
|
Pitch/yaw/roll |
<20 |
μrad |
|
Push/pull force |
30/10 |
N |
|
Stiffness in motion direction |
0.5 |
N/μm±20% |
|
Unloaded resonant frequency |
500 |
Hz±20% |
|
Unloaded step time |
10/0.8 |
ms±20% |
|
Load capacity |
1.5 |
kg |
|
El.capacitance |
1.8/axis |
μF±20% |
|
Material |
Steel, Al |
|
|
Mass |
200 |
g±5% |
Note: Above parameters are measured with the E00/E01 series piezo controller. The maximum driving voltage can be -20V~150V; for high reliability long-term use, the recommended driving voltage is 0~120V.
|
|
|
