S22.U0S/K-A1W 1-Axis Piezo Tilt Stage-Non-magnetic Application, Precise Control
In fields with strict requirements for precise positioning and magnetic field environments, a high-performance tilt stage is often the key to breaking through technical bottlenecks. With high precision, reliable non-magnetic performance and unique appearance design, CoreMorrow S22.U0S/K-A1W piezo tilt stage has become ideal for 1-axis deflection control, providing nano-positioning solutions for cutting-edge scientific research and industrial applications.

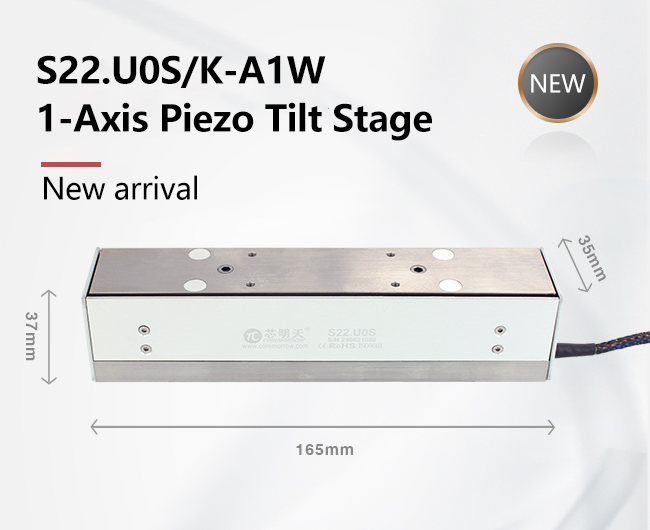

S22.U0S/K-A1W is a 1-axis piezo tilt stage that can achieve θx deflection of 0.5mrad. Its load capacity can be up to 500g and the open-loop resolution can be up to 0.005μrad. The body of the stage is made of non-magnetic titanium alloy and aluminum alloy materials, and the internal structure has undergone special anti-magnetic treatment, which is suitable for applications in magnetic field-sensitive conditions. It has a compact structure measured 165*35*37mm³, which is easy to integrate. The product is shown in the following picture.
Characteristics
Tilt in θx
Tilt angle up to 0.5mrad
Resolution up to 0.005μrad
Load capacity up to 500g
Non-magnetic
Application
S22.U0S/K-A1W is a 1-axis piezo tilt stage that can achieve θx deflection of 0.5mrad. Its load capacity can be up to 500g and the open-loop resolution can be up to 0.005μrad. The body of the stage is made of non-magnetic titanium alloy and aluminum alloy materials, and the internal structure has undergone special anti-magnetic treatment, which is suitable for applications in magnetic field-sensitive conditions. It has a compact structure measured 165*35*37mm³, which is easy to integrate. The product is shown in the following picture.
Technical Data
|
|
|
|
Active axes |
|
|
Drive control |
2 driving channels , 1 sensing channel/2 driving channels |
|
Nominal tilt range(0~120V) |
|
|
Max.tilt range(0~150V) |
|
|
Sensor |
|
|
Resolution |
|
|
Closed-loop linearity |
|
|
Closed-loop repeatability |
|
|
Unloaded resonant frequency |
|
|
Closed-loop operating frequency(-3dB) |
|
|
Step time |
|
|
El. capacitance |
|
|
Load capacity |
|
|
Material |
Titanium alloy, aluminum alloy |
|
Mass(with no cable) |
|
Recommend Controller

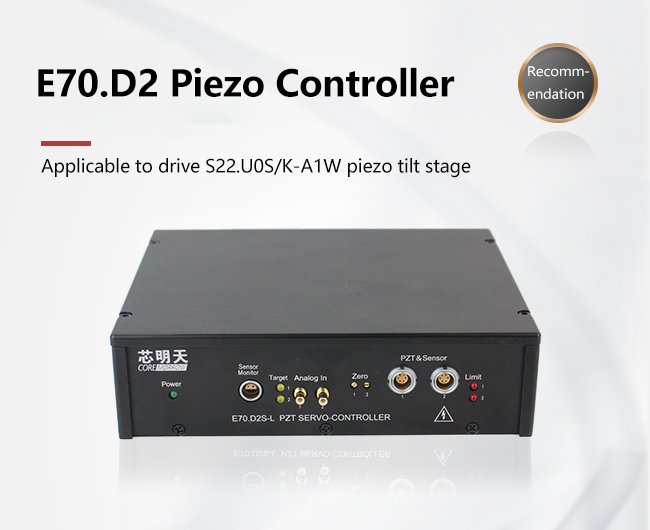

E70.D2 piezo controller is suitable for driving the S22.U0S/K-A1W piezo tilt stage. It is a 2-channel controller based on the standard E70 piezo controller for communication interface transformation, and digital communication can be carried out through serial port, USB or network port. It is powered by 24VDC/3A and has a bandwidth of up to 10kHz per channel. It adopts analog and digital control, with closed-loop servo control function, and the upper computer software supports secondary development. Its body is equipped with a heat dissipation area, which can quickly dissipate the generated heat. It has a dimensions of 147×170×45.5mm³, which is very compact in size and easy to integrate.
