- Introduction
- Feedback
Characteristics
|
|
|
|
|
 Deflection travel up to 2.5mrad/axis, resolution up to 0.2μrad
|
|
|
|
|

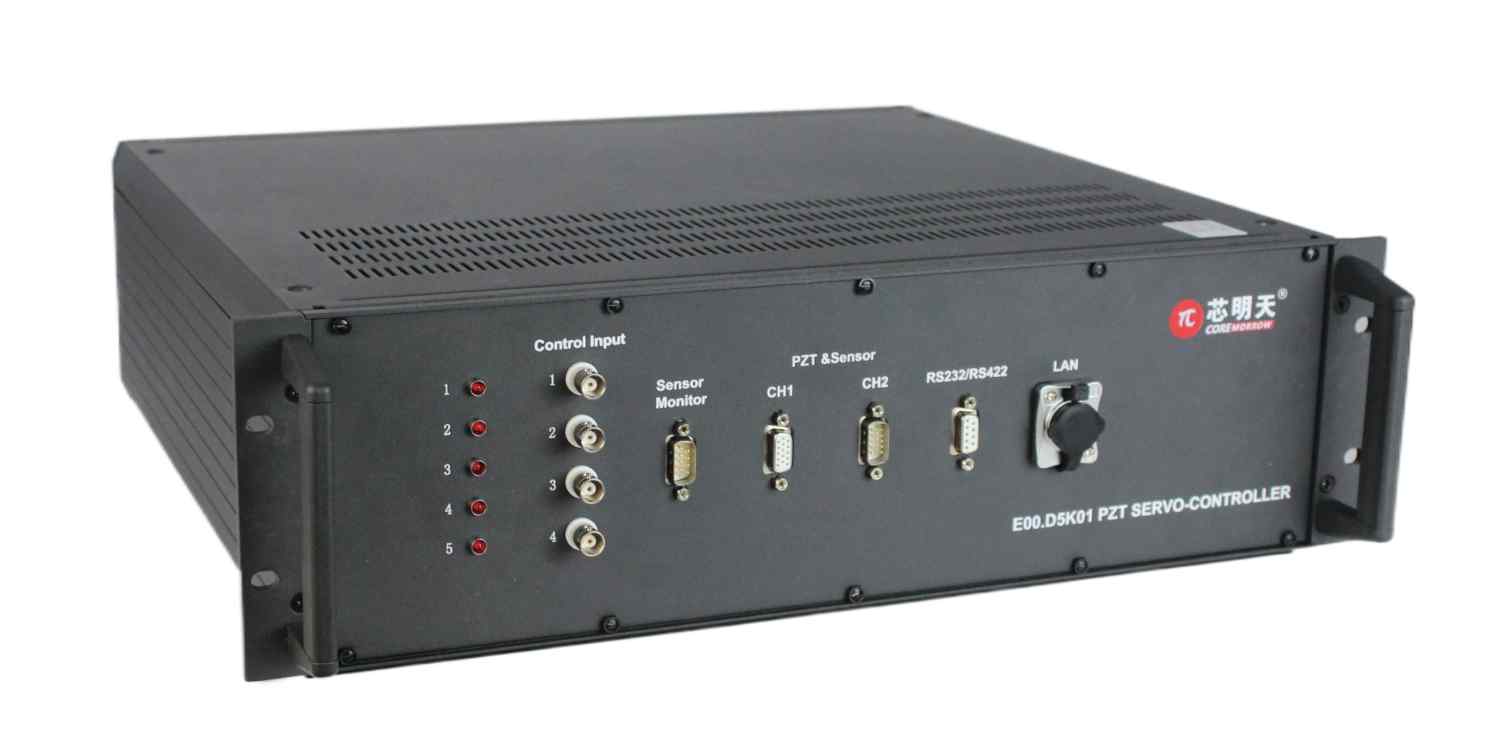

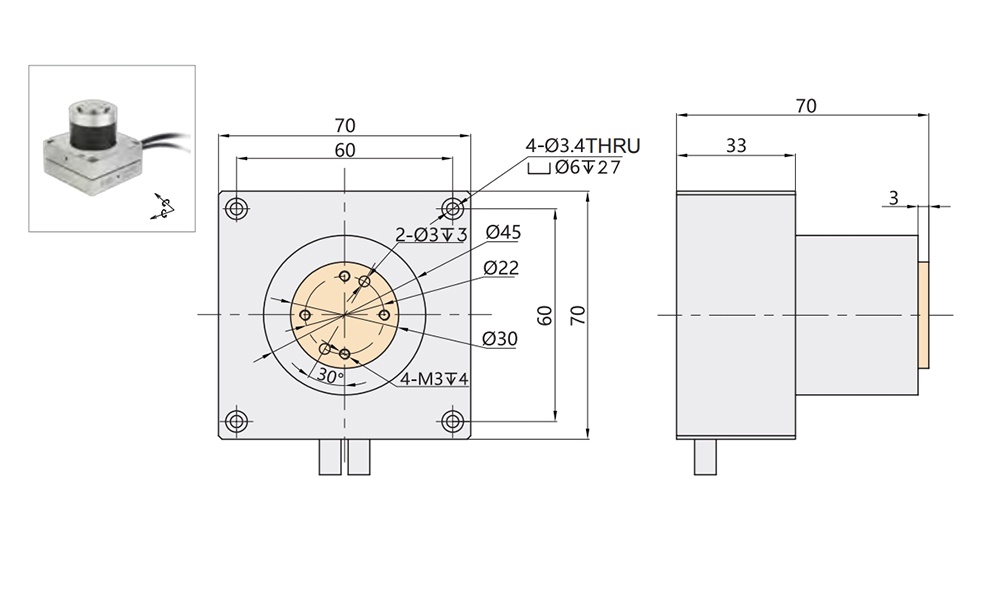

Recommended controller  E00.D5K01
|
| Technical Data | ||||
|
Type |
S-Closed loop
K-Open loop |
H40.XYT2S
|
H40.XYT2K
|
Units |
|
Active axes |
X、Y、θx、θy |
X、Y、θx、θy |
|
|
|
Drive control |
5 driving channels |
5 driving channels |
|
|
| Nominal linear travel range(0~120V) | 26 | 26 |
μm±10% |
|
|
Max. linear travel range(0~150V) |
33 | 33 |
μm±10% |
|
|
Nominal tilt angle(0~120V) |
±1（≈±206''） |
±1（≈±206''） |
mrad±10% |
|
|
Max. tilt angle(0~150V) |
±1.25（≈±257''） |
±1.25（≈±257''） |
mrad±10% |
|
|
Integrated sensor |
SGS |
- |
|
|
| Resolution in XY | 12 | 4 | nm | |
| Resolution in θxθy |
0.5（≈0.1''） |
0.2（≈0.04''） |
μrad |
|
|
Linearity in XY |
X0.22/Y0.05 |
- |
%F.S. |
|
|
Linearity in θxθy |
θx0.2/θy0.28 |
- |
%F.S. |
|
|
Repeatability in XY |
X0.1/Y0.06 |
- |
%F.S. |
|
|
Repeatability in θxθy |
θx0.06/θy0.07 |
- |
%F.S. |
|
|
Unloaded resonant frequency |
X525/Y629/θx5744/θy4064 |
X525/Y629/θx5744/θy4064 |
Hz±20% |
|
|
Resonant frequency@5kg |
X215/Y230/θx41/θy40 |
X215/Y230/θx41/θy40 |
Hz±20% |
|
| Step time |
XY50/θxθy150@5kg、1Hz |
- |
ms±10% |
|
|
El.capacitance |
XY3.8/θxθy3.6 |
XY3.8/θxθy3.6 |
μF±10% |
|
| Load capacity | Horizontal | 5 | 5 | kg |
|
Material |
Ti, Aluminum, Steel |
Ti, Aluminum, Steel |
|
|
|
Mass (not include cable) |
950 |
950 |
g±5% |
|
|
|
|
