N56 Linear Piezo MotorCurrent Location：Product Homepage >> Linear piezo motor>>N56 Linear Piezo Motor
  • Introduction
  • Feedback

The N56 linear piezo motor adopts piezo micro-drive technology, which uses piezo micro-displacement actuators to achieve high-precision positioning and movement technology. Macro motion linear millimeter-level stroke is achieved after mechanical structure conversion of the microdeformation of piezo actuator under electric field.


Characteristics


 Piezo drive

 High resolution

 Stroke up to 50mm

 Small size

 Open/closed loop version and vacuum version optional




N56.10K linear piezo motor

Optional XY version

N56二维直线压电马达

Optional XY version

N56二维直线压电马达

Application


 Atomic force microscope

 Scientific research

 Fiber optic docking

 Microfabrication

 Nano positioning with small load & large travel

 Precision positioning & micro-nano operation of semiconductors, etc


Recommended Controller


E53.C1K-J

    Technical Data

Type

N56.10K-B

N56.20K-B

N56.30K-B

N56.50K-B

N56.10E-B

N56.20E-B
 N56.30E-B
 N56.50E*

Units

Active axes

X

X

X

X
 X
 X
 X
 X



  Integrated sensor -

grating sensor

Travel range

10or±5

20or±10

30or±15

50or±25
 10or±5
 20or±10
 30or±15
 50or±25

mm

Speed limit

3

3

3

3
 3
 3
 3
 3

mm/s±20%

Resolution

<1

<1

<1

<1
 0.005
 0.005
 0.005
 0.005

μm

Max force

3

3

3

3
 3
 3
 3
 3

N

Repeatability

-

-

-

-
 0.1
 0.12
 0.15
 0.2

μm±20%

Max force

-

-

-

-
 3
 3
 3
 3

N

Holding
force(Passivity)

4.5

4.5

4.5

4.5
 4.5
 4.5
 4.5
 4.5

N

Max load
(horizontal direction)

500

500

500

500
 500
 500
 500
 500

g

Max load
(vertical direction)

0.1

0.1

0.1

0.1
 0.1
 0.1
 0.1
 0.1

kg

Axial stiffness

1.5

1.5

1.5

1.5
 1.5
 1.5
 1.5
 1.5

N/μm±20%

Lateral stiffness

9

9

9

9
 9
 9
 9
 9

N/μm±20%

Operating
temperature

0~50

0~50

0~50

0~50
 0~50
 0~50
 0~50
 0~50

℃

Cable length

1.5

1.5

1.5

1.5
 1.5
 1.5
 1.5
 1.5

m±10mm

Material

Al, Steel

Al, Steel

Al, Steel

Al, Steel
 Al, Steel
 Al, Steel
 Al, Steel
 Al, Steel



Mass
(not include cable)

40

50

60

82
 58
 75
 85 110

g±10%

Recommended
Controller

E53.C1K-J(Digital control, USB and serial port
communication)

E53.D1E-J(Digital control, USB and serial
port communication)

*：N56.50E overall dimensions 83x40x15mm

    N56.10K-B1Drawings（Click on the picture to enlarge it）
    N56.20K-B1Drawings（Click on the picture to enlarge it）
    N56.30K-B1Drawings（Click on the picture to enlarge it）
    N56.50K-B1Drawings（Click on the picture to enlarge it）
    N56.XYZ10K-B1 Drawings（Click on the picture to enlarge it）
    N56.10E-B1 Drawings（Click on the picture to enlarge it）
    N56.20E-B1 Drawings（Click on the picture to enlarge it）
    N56.30E-B1 Drawings（Click on the picture to enlarge it）

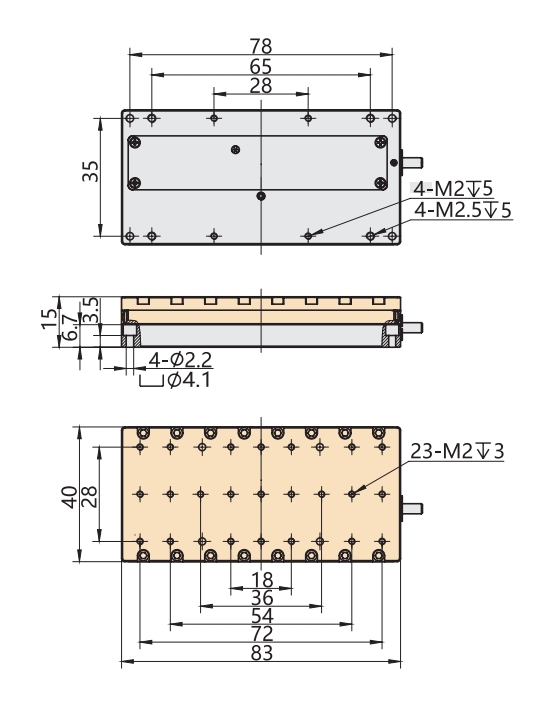

    N56.50E-B1 Drawings（Click on the picture to enlarge it）
     Downloads
Auto CAD PDF

N56.10K

N56.10E

N56.20K

N56.20E

N56.30K

N56.30E

N56.50K

N56.50E

N56.XYZ10K

Step





/
Specs Sheet

N56.10K-B1


N56.20K-B1

N56.30K-B1


N56.50K-B1

/ /
Manual
